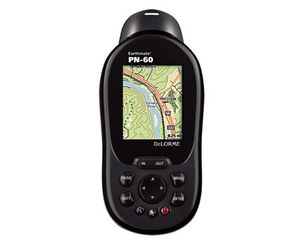

- Version PN-60 - Rugged, Reliable GPS with Maps Software

The rugged, reliable Earthmate PN-60 delivers proven GPS capabilities, plus DeLorme's market-leading map and aerial imagery displays. DeLorme Topo North America desktop software and GPS maps are included, with comprehensive detail for all your favorite outdoor activities in the U.S and Canada. Aerial imagery, nautical charts, and supplemental USGS and Canada topo maps are also available.

  • High-sensitivity receiver with predictive GPS for fast satellite fix
  • Elevation profiles with your position pinpointed
  • 3-axis electronic compass; barometric altimeter
  • Battery-saving power management system
  • One-touch synchronization on GPS data exchanges
  • Customizable activity-based user settings
  • All the memory you need – 3.5 GB onboard, expandable to 32 GB via SD card
  • No waypoint or track limits – send to, read from SD card
  • Crystal-clear sunlight-readable screen; ergonomic design for one-handed operation
  • Easy push-button interface, proven reliable at the North Pole and Mt. Everest
  • WAAS-enabled
  • Waterproof (IPX7)
  • 2 AA batteries included

PN-60 Interface

  • Intuitive, easy to use, icon-based screen navigation
  • Reliable, ergonomic push-button design that enables one-handed use, even with gloves on
  • High-resolution sunlight-readable screen

PN-Series receivers have been tested in some of the most extreme conditions on earth. They were the GPS of choice for John Huston and Tyler Fish during their historic Victorinox North Pole '09 expedition, and Ed Viesturs took the PN-40 on his successful 2009 ascent of Mt. Everest.
  • Military standard 810F for vibration and shock – also tested to function in high-vibration conditions such as the Bonneville Salt Flats
  • Waterproof to the IEC 529 IPX7 standard
  • Functions in high humidity, including consistent humidity levels over 90%, and in the rain
  • Operating temperature range for the PN-60 is -20 degrees C to +75 degrees C

Plan the Perfect Outdoor Experience – Anywhere in the U.S. and Canada
Topo North America 10.0 PC desktop software is an exceptionally full-featured travel planning, routing, and GPS resource. Create customized maps with road and trail routes, and navigate worry-free in your vehicle, on foot, or on the water, anywhere from the Yukon to the Rio Grande.
  • Use Topo North America to scout your trips as if you were there, with realistic 3-D and 360-degree rotation
  • Locate places of interest, create driving and hiking routes, identify public lands, import maps and imagery
  • Exchange GPS files with the PN-60
  • Easily manage and edit your collected GPS files
  • Print maps for take-along reference
Trust the Latest Map Detail
  • 11,000 added U.S. national forest trails
  • 210,000 new and updated roads
  • U.S.Bureau of Land Management recreation lands now included
  • The most up-to-date map detail from Canada government sources
U.S.-Based Cartography, Engineering, Service, and Support
DeLorme does not outsource or off-shore its development or support services. Our innovative geospatial and hardware engineering, customer care, and technical support all originate from our New England headquarters – home to Eartha, the world's largest rotating and revolving globe.
  • Use Topo North America to scout your trips as if you were there, with realistic 3-D and 360-degree rotation
  • Locate places of interest, create driving and hiking routes, identify public lands, import maps and imagery
  • Exchange GPS files with the PN-60
  • Easily manage and edit your collected GPS files
  • Print maps for take-along reference
Why Settle for Just One Map?
The PN-60 has the amazing ability to layer multiple map and imagery types on the included Topo North America terrain and street detail.
Whatever your preferred activity, you'll never have to settle for just one map.
Included. Find your position on up-to-date DeLorme Topo North America 10.0 maps.
  • Navigate worry-free with complete U.S. and Canada topographic detail
  • Extensive U.S. trail coverage
  • U.S. and Canada streets, roads, and places of interest, including campgrounds, boat launch sites, unique natural features, prime hunting and fishing spots

The PN-60 supports all popular outdoor activities, with features including:
  • A highly-accurate 3-axis electronic compass that works when held in any position, moving on foot or standing still
  • An elevation display that pinpoints your location
  • Sensitive barometric altimeter for precise elevation readings and the ability to gauge potential weather changes

Backcountry Expeditions

  • Mark your vehicle and campsite locations for safety. Verify you're on the correct trail, or go off-trail with confidence. Extended battery life gives extra backcountry security.
  • Up-to-date DeLorme topo maps for U.S. and Canada, aerial imagery, official USGS and Natural Resources Canada government topos, and NOAA nautical charts provide highly detailed, versatile, and accurate navigational and planning support

Day Hiking and Family Travel

  • The first PN-Series GPS to have unique settings customized for different sports and activities. Just choose your activity and you're ready to go
  • Create routes and search four million places of interest, from campgrounds to restaurants, to chain stores and more

Maps for Boaters

The ability to display NOAA nautical charts makes the PN-60 a valuable navigator for sea kayaking and coastal sailing. Navionics® lake maps and marine charts (sold separately on SD cards) are also supported. And, the availability of high-resolution aerial imagery provides an accurate depiction of the natural and manmade features near your location.

Key Features:
  • » 3.5 GB of internal flash memory
  • » Intuitive icon-based user interface for easy on-device navigation
  • » Elevation profile cutaway views that pinpoint the user's position
  • » GPX support for improved waypoint and track management
    • › No finite limitations on the quantities of each that can be saved to internal memory
    • › In addition, all can be saved to and retrieved from SD cards
    • › Tracks can now hold 20,000 points (versus 10,000 with earlier PN-Series models); you can edit track settings to automatically save the active track and start another (upon hitting 20,000 points); overwrite the existing track points (oldest first); or stop track recording entirely
    • › Waypoints - save 1500 per file to internal memory, no maximum limit on the number of files
  • » Latest DeLorme power management system with ambient light sensor for optimal battery life
  • » Holds 100 routes (compared to 50 with earlier PN-Series models)
Powerful GPS Performance Features
  • » High-sensitivity 32-channel STMicroelectronics Cartesio chipset and DeLorme ConstantLockTM for quick satellite acquisition and reliable signal retention
  • » DeLorme predictive GPS calculates satellite positions for near instantaneous acquisition
  • » Dual-core processor for blazing-fast performance
  • » 3-axis electronic compass performs with the PN-60 held in any position
  • » Sensitive barometric altimeter for highly-accurate reliable altitude readings
  • » 65K bright-color TFT screen for clarity in any light conditions
  • » On-device road routing
  • » SDHC support up to 32 GB
  • » WAAS-enabled accuracy (to within 3 meters)
  • » GPX support for sending unlimited tracks and waypoints to SD cards

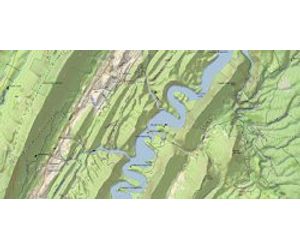

The Most Comprehensive GPS Detail Available
On-device data layering lets you see your GPS location with the advantage of numerous map and imagery choices. Switch among them to gain a comprehensive view of where you are – it's revolutionary and provides a level of geographic detail unavailable on any other handheld GPS.
Layer all these map and imagery options on your PN-60 and always have the right detail for any activity, wherever you go in the world. PN-Series receivers also display market-leading Navionics® lake maps and marine charts (no set-up required, sold separately on SD cards).
Complete Detailed U.S. and Canada Topographic and Street Maps (included with all PN-Series GPS purchases)
  • » Detailed vector-based maps created from the USGS topographic data and the latest DeLorme U.S. street and trail network
  • » U.S. land cover including bodies of water, wetlands, forests, mountains, glaciers, grasslands, rock cover & more
Canada Topographic Map Sheets
  • » Official Natural Resources Canada data
  • » Topographic contour lines, bodies of water, roads and trails, also significant buildings, historic sites, and other manmade features in urban areas.
  • » 1:50,000 scale
  • » Coverage for most of Canada
High-Resolution Color Aerial Imagery
  • » Best available resolution for many areas
  • » Provides on-the-ground detail for areas outside Topo North America coverage
USGS 7.5-Minute Quad Maps
  • » Authentic USGS 1:24,000 (7.5-min.) topo quads, scanned into a seamless database
  • » See roads, trails, locations of buildings, natural landmarks, and an endless variety of physical features
NOAA Nautical Charts
  • » The complete set of U.S. waterway charts available, including coastlines, Great Lakes, Alaska, Hawaii, many navigable rivers
  • » See aids to navigation, water depths, water body names, hazards, and more

A green arrow shows your location on the screen map, and points in your direction of travel. For screen orientation, you can select north up, course up, or heading up. The PN-60 will automatically collect a track as you travel. You can save the collected track, use it to create a route, and (when you're back home) convert it to a routable road or trail within Topo North America.
Create waypoints with the click of a button, select from a vast menu of symbol options for the appropriate waypoint icon and add descriptive comments.
With the PN-60's search capability, you can locate cities and towns, roads, trails, natural features, points of interest including businesses, restaurants, campgrounds, and much more; any search result can be saved as a waypoint.
Create road routes or direct point-to-point routes on the device, or easily import road or trail routes from Topo North America. When navigating on a route, the PN-60 emits audible turn alerts (your choice of numerous sounds – ring, beep, whistle, etc.).

You can customize the PN-60's Information Page for your trip so that everything you want to know is all on one screen
  • Time or distance to next turn or finish (if navigating on a route)
  • Distance traveled (odometer)
  • Trip time
  • Speed
  • Battery life, GPS accuracy
  • Also create custom set-ups for quick access to the PN-60 screens and features you want for your favorite activities
  • and much more!
New Custom Controls Put You in Charge

  • Button-Locking – prevents accidental unit activation or data input (enabled using the Power button)
  • Stealth Mode – enforces sound and light discipline
  • Power-Saving Mode – increases battery life 2x, ideal for use when packing the device for occasional check-ins but not steady usage
  • Low-Level Nighttime Illumination – enhances light discipline in theater operations
  • Project waypoints – 'Look ahead' feature for sighting downrange

Map Detail Includes:
  • » Comprehensive street and topographic coverage for the U.S. and Canada
  • » Land cover
  • » Lakes and streams
  • » Updated U.S. trails
  • » State and national parks and forests
  • » Boat ramps, campgrounds, hunting and fishing spots, unique natural features
  • » Over 4 million U.S. and Canada places of interest
  • » Gazetteer point data descriptions from DeLorme Atlas & Gazetteer series
  • » Mexico main roads
Desktop Mapping and GPS Features
  • » Exclusive - automatic road and trail routing
  • » Easy GPS file exchanges with PN-60 (waypoints, tracks)
  • » Exclusive - convert imported tracks to routable roads or trails
  • » Realistic 3-D terrain views with flyovers
  • » Highly-defined shaded relief
  • » Contour lines with elevation numbers
  • » Split screen integration with aerial imagery, USGS and Canada topos, NOAA nautical charts, and more
  • » Use draw tools to add waypoints and tracks for upload to PN-60
  • » Paperless geocaching, Pocket Query imports
  • » In-vehicle, run Topo North America 10.0 on laptop PC connected to PN-60 or other Earthmate GPS for voice-guided navigation
  • » Versatile print features – create handy take-along reference maps for in-vehicle, on the water, or in the field

  • » Waterproof (IPX7)
  • » Impact-resistant rubberized housing (Mil STD 810F)
  • » Device dimensions: 2.43' W x 5.25' H x 1.5' D
  • » Weight: Without batteries: 5.35 ounces; with Li-Ion rechargeable battery: 6.7 oz; with alkaline AA batteries: 7.00 oz.
  • » 32-channel STMicroelectronics Cartesio GPS chipset for fast, reliable satellite acquisition
  • » A dual-core processor for lightning quick map redraws, when panning or zooming
  • » Fast USB 2.0 data transfer to internal memory or SD card in device
  • » Proprietary Kalman filter for enhanced GPS accuracy
  • » 3-axis electronic compass with included accelerometer performs when held in any position
  • » Sensitive barometric altimeter for reliably accurate altitude readings
  • » Uses 2 AA batteries (included)
  • » Super high-sensitivity 32-channel Cartesio chipset by STMicroelectronics for rapid signal acquisition
  • » ConstantLock satellite retention, even in challenging GPS environments
  • » Predictive GPS for near-instantaneous acquisition
Acquisition Times:
  • » Hot Start: 5-6 seconds
  • » Warm Start: < 45 seconds
  • » Cold Start: < 60 seconds
  • » Update rate: 1/second, continuous
GPS accuracy:
  • » Position: < 15 meters, 95% typical*
  • » Velocity: 0.05 meter/sec steady state
WAAS accuracy:
  • » Position: < 3 meters, 95% typical*
* Subject to accuracy degradation to 100m 2DRMS under the United States Department of Defense-imposed Selective Availability Program.
  • » Sharp high-resolution 2.2' (220 x 176 pixels)
  • » 65K-color Transflective TFT screen
Memory & Storage
  • » 3.5 GB internal flash memory
  • » Supports SDHC high-capacity SD-cards – up to 32 GB
  • » Holds up to 10 tracks (20,000 points per track), 1,500 user-defined waypoints, and 100 routes; endlessly expandable via GPX transfer to SD cards
Topo North America 10.0 Minimum System Requirements
Operating Systems
  • » Microsoft® Windows® 7 (all versions) with 1GB of RAM (2+ GB recommended)
  • » Windows Vista® (all versions) with 512 MB RAM (1+ GB recommended)
  • » Windows Regional Options set to English, United States
  • » Microsoft Internet Explorer 7.0 or later
  • » 1.5 GHz or higher processor, Pentium 4, Athlon 64 or later
  • » 2 GB of available hard-disk space (8 GB if all map data for North America is loaded to hard drive)
  • » DVD-ROM Drive
  • » 1024 x 768 screen resolution or higher
  • » Compatible with Intel-based Macintosh computers running Boot Camp®
For GPS Use
  • » Compatible with any DeLorme Earthmate GPS receiver
