Lakes Environmental - Version SLAB View 5.2 -Emergency Release Dense Gas Modeling Software
This software provides a graphical user interface for the SLAB atmospheric dispersion model, specifically designed for denser-than-air releases. It is an essential tool for predicting hazardous zones and assessing potential impacts of accidental emissions.
The platform visualizes how a release evolves over time and determines the total footprint of the incident.
Users can simulate continuous, finite duration, and instantaneous releases from four different source types:- A ground-level evaporating pool
- An elevated horizontal jet
- A stack or elevated vertical jet
- And a ground-based instantaneous release
The SLAB model was developed in the 1980`s by the Lawrence Livermore National Laboratory (LLNL), with financial support from the Department of Energy (DOE). The SLAB model is currently distributed by the U.S. EPA.

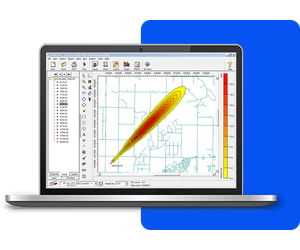

Fully integrated GIS-based interface combining easy to use graphical tools.
Visualize plume dispersion in 3D with SLAB 3D`s animation, ideal for presentations and analysis.
Export your buildings, sources, receptors and contours into Google Earth.
We’re here to make things easy! Here’s a list of everything included with your software purchase:
- 32-bit and 64-bit Operating Systems
- Windows 10 or 11
Minimum Requirements:
- An Intel Pentium 4 processor (or equivalent) or higher
- At least 2 GB of available hard disk space
- 1 GB of RAM (2 GB recommended)
- 1 Year Access to Maintenance/Technical Support
- 1 Year Access to Software Updates
- User`s Guides and Manuals
- Software Updates
- Technical Support
- User`s Guides and Manuals
SLAB View is an interface for the SLAB model. See below the technical specifications for this model.
- Model Name: SLAB – An Atmospheric Dispersion Model for Denser-Than-Air Releases
- Developed by: Dr. Donald L. Ermak, Lawrence Livermore National Laboratory (LLNL)
- Model Type: Multi-phase model with Steady-state Gaussian Plume model and transient puff modes
- Time Step: Seconds
- Range: Near Field
- Source Types: Evaporating pool, horizontal jet, vertical jet or stack, instantaneous or short duration evaporating pool
- Release Types: Denser than air plumes
- Meteorology: User defined meteorological conditions
- Windfield: Homogeneous
- Emission Types: Emergency release, continuous and transient emissions
- Atmospheric Chemistry: Not modeled
- Output Type: SLAB produces outputs of chemical concentrations at various positions downwind and at specified heights above the ground
- Regulatory Status: US EPA Alternative Model
