4Logit - Version Stack v6 -Emission Monitoring Platform

• Data Validation according to Regulation's requirements
• Real time checking events and evaluate against influencing the measurements
• Real time corrections depend Oxygen Ref, Pressure, Temperature and Humidity
• Calculations from first step volumetric to mass units.
• QAL2 function entry and Manual or Automatic QAL3 management
• CUSUM, EWMA, SHEWHART reporting related with QAL3 results
• %100 Web Based Software Platform
• Secure Database : inaccessable and unchangeable records
• Two Level Authentication
• Rich Reporting Tool : pdf - Excel
• Connection to Authority
• Data sharing with Automation Platforms

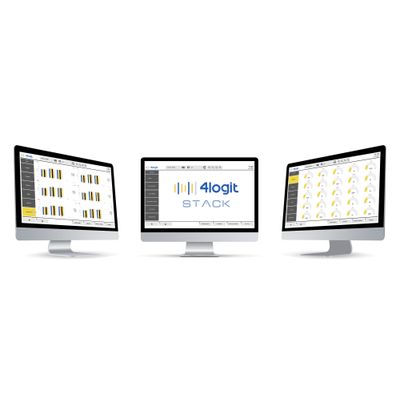

Stack v6 Software has developed specially for CEMS applications to cover all of requirements of Continuous Stack Gas Data Handling, Monitoring, Reporting and also real time communication with Authority system as part of eco system of CEMS.

It is mainly referred to European Regulatory Framework including EN14181; data validation, unit converstions, calculations and averaging management, also reporting all is well covering requirements.

Stack v6 has developed with experience of past 5 different versions until today from 15 years at least.

Stack v6 Emission Monitoring Platform is also answering nowadays expectations of plants which they have from their Industry 4.0 and IIoT working. So Stack v6 is a good solution to take CEMS monitoring into Industry 4.0 workings.

v6 Emission Monitoring Software is a Platform that open to upgrade for local government requirement of countries, specially Real Time Data connectivity with Authority... Stack v6 supports many methods for that.

WHAT IS EMISSION MONITORING SOFTWARE?

Emission monitoring software is a part of CEMS ecosystem and has working between emission analysers and CEMS users including authority, and results produced by software platform has a great importance because it is directly related to environment and control of pollution degree and while bringing advantages for environment, it advises factories how they can take measure for less pollution for environment. Emission monitoring software works according to government regulations. Most common are EPA - USA and TUV norms of Europe. Emission monitoring is not only data collection and visualisation process. There are many operations like event based data validity, calculations and condition based reporting, also real time connection to the local authority systems.

DATA VALIDATION FOR AN EMISSION MONITORING SYSTEM?

Data validation is the first and one of the most important steps in the emission monitoring evaluation process. Any collected data may not indicate stack gas or dust or flow value due to some reasons or events which influence measurements. Also some events affect only some parameters as independent and this can create problem for further steps of calculations and also there are some requirements of the regulations for these cases including data getting periods and its averages.

CALCULATIONS

Calculations start after data validity and continue until almost the end of all operations. There are two different sides for calculations. One can be said for conversion of units staying with relation of event based data validity. These calculations start from ppm to kg/h values in chain for concentration measurements. There are other calculations for conversion of units for going to flow. And second calculations are related with real time averaging of validated and calculated all parameters in each unit steps and as continuation to calculation, condition based reporting and producing indications related with QAL3 based results can be other calculations within calculation procedures.

CALIBRATION

Calibration or routine checking process is one of the most important topics of CEMS. In the regulation, for long term measurement security, there are some routines called QAL, coded QAL1, QAL2 and QAL3. While QAL1 is related to the manufacturing process of the analyser, QAL2 and QAL3 are related to after commissioning of the CEMS or during operation. QAL2 is performed by an independent accredited laboratory and the results of QAL2 for each parameter are entered into the emission monitoring software, and QAL2 entry is directly related to measurements and also calculations. Let's note QAL2 here, and QAL3 done by CEMS system integrators or CEMS users, operation can be done by manual or automatic using reference gases. QAL3 results are fed into the emission monitoring software to make some calculations depending on previous QAL3 results... There are special reports like CUSUM, EWMA and SHEWHART... QAL3 reports give some comments to the user to perform re-calibration or maintenance of analysers.

REPORTING FOR EMISSON MONITORING

CEMS reporting requirements are completely different from regular data acquisition system reports. Apart from regular data reports between two dates, there are special reports that are event based or according to data validity. Report results determine both the health of CEMS with available data and how exceeded the limit for pollution of environment.

DATA SECURITY FOR EMISSON MONITORING SOFTWARE PLATFORM

Data security is a measure for collected, calculated emissions data. Electronic recording systems are often open to data manipulation. This is the point that it should have a look for an emission monitoring system and end user or authorities should periodically double check from analyser to software for data's correctness. While one point is data accuracy, another point is database security of the emission monitoring software. Software databases must be inaccessible or unalterable. Users and system integrators as well as authorities should take care of this point.

CYBER SECURITY FOR CEMS

Especially in the last 20 years, day by day, cyber security is becoming more and more important for the software working at network. Cyber security is also an important issue for the emission monitoring software because the importance of data results' evaluation or data availability or the requirement of last 5 years' data availability in the system are required to take the highest measures for the emission monitoring platforms. Inaccessible databases, password-protected connection or two-factor authentication and some other software measures can be points that we should take care of.

Supported Analyzers - Instruments :

• ELAN Protocol : It is mainly for Siemens Gas Analyzers such as Ultramat 23, Oxymat and other family members. Support both Rs485 and Ethernet for ELAN

Modbus Protocol

• it is for connection other all analyzers which Modbus output... Durag, ABB, Sick analyzer can easly be connected to system. Support both Rs485 and Ethernet for Modbus
• ASCII Protocol for some analyzers which has ASCII output.
• Other Automation Protocols system supports to integration of some automation protocols like Siemens S7 PLC etc.

Stack Number : Software Platform can be ordered from 1 Stack to 20 stacks version.

Monitoring Platform :

• %100 Web Based
• Modern Visualisations
• Highest Security measures

Database : Inaccessable and Unchangeable Secure Database

Automatic Backup : Supporting daily automatic backup via USB port to external memory

QAL2 and QAL3 :

• Supports QAL2 and QAL3 result entries.
• QAL3 has supporting as Manual and Automatic

QAL3 Reporting

• CUSUM
• EWMA
• SHEWHART

Mobile Web Visualisation Option :

• It is for monitoring on Mobile devices. this option related with Stack number.
• Some functions are limited for mobile web.

Advanced Report Manager :

• It is mainly for making comparison between Stacks. for example, you need to check CO kg/h of Stacks in one report to compare.
• This opsion can be ordered with more than one Stack Emission Monitoring Software.

Auto Report Manager :

• If you are taking perodically reports, no need to work on it. by this option, Stack v6 can take report and do attachment of an email and send receiver automatically when time came.

Data Sharing Manager

• by this option, you can share all validated and calculated data with other automation platforms using protocol OPC UA Server.

SQL Export Manager :

• When you need your data in a SQL for your own using, This option is for this. Stack v6 Emission Monitoring Software can to automatically export to connected SQL database as daily.

Authority Connection Manager :

• Stack v6 can be connected real time to authorities in two ways connection using REST - Web Service, according to API document of Authority.
• Also can supports OPC UA Server or MQTT for data sharing for both realtime and historical (This topic always opens to discussions.)

Internal QAL3 Manager :

• When QAL3 management needed control by Software, you can buy this option. This is managing Gas Cylinders and recording automatically for QAL3 reports
• Please note that Stack v6 is supporting external QAL3 system in standard. please ask for more.
