Dragon DHA - Envantage Dragon - Chromatography Systems Software
Envantage, Inc. is proud to offer a suite of products designed to meet the demanding needs of modern analytical chemistry laboratories.
Dragon DHA software is compatible with a full range of chromatography systems including:

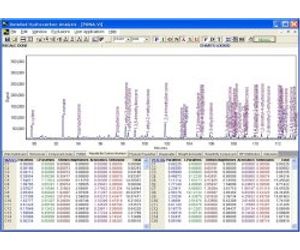

Dragon Detailed Hydrocarbon Analysis Software is an application designed specifically for ease of use in petrochemical laboratories. Dragon DHA software provides fast and accurate identification of the hydrocarbon components of feedstocks, fuels, and other refined products. Unique to the Dragon DHA application is the use of the “DHA Dashboard” which provides a view of all analytical results on one screen and recalculation of results in real time. Use of the dashboard as well as a fully graphical user interface allows for exceptionally fast verification of results.
Dragon DHA software is compatible with a full range of chromatography systems including:
- Agilent ChemStation (including OpenLAB CDS)
- Agilent EZChrom (including OpenLAB CDS)
- ChromPerfect
- Galaxie
- Any Chromatography Data System capable of AIA (.CDF) file output
Major Features of Dragon DHA Include:
- New! ASTM D7900-13 Light Hydrocarbons (IP 601)
- ASTM Methods D5134, D6729, D6730, D6733, as well as proprietary methods
- PONA and PIANO analyses
- Quick database creation
- Fast Peak identification and Results processing
- Unknowns tab lists unidentified peaks in order of concentration
- Unknown indexer takes the user directly to the unknown peak for identification
- Unique Dashboard feature continuously presents the user with all calculated results; results are instantly recalculated when changes are made
- Hydrocarbon group-type filtering
- Full preview/printing of reports (Custom report section selection in development)
- Results are ‘bound’ with the chromatographic data for instant retrieval/archiving
- Original files and data are never affected (CFR Part 11/ISO 17025)
- Result files are saved as CDF (AIA) format files and can be accessed by any third-party application that supports reading the AIA file format
- Result files themselves work as fully functional reference databases
- Full reports are stored with results for easy retrieval without reprocessing
Built In Chemical and Physical Property Calculations:
- Vapor Pressure
- Oxygenate content
- Relative Density
- Average Molecular Weight
- Calculated Research Octane Number
- % Carbon, % Hydrogen
- Calculated Bromine Number
- Mass% and Vol% Multisubstituted Ring Aromatics
- TBP Boiling Point Distribution
- Wt%, Vol%, Mole% of Group Types by Carbon Number
- Wt%, Vol%, Mole% of Individual Components
Extend Functionality By Integrating User Defined Programs
Envantage Dragon DHA is also available as an Envantage Bundled DHA Application that includes onsite setup with user training and full system (hardware + software) technical support. An Envantage DHA bundled analyzer system includes the GC (yours or ours, new or used), your choice of data acquisition software, Dragon DHA software, with PC. (Click here for more information about Envantage Bundled Applications)
