ESPRIT - Version CAMduct -Best HVAC Duct Fabrication Software

CAMduct’s powerful nesting and reporting tools have the power to integrate with the shop floor and Esprit’s Arrow CNC plasma cutting machine, with all common seaming and flanging systems supported. CAMduct can also calculate lists of flange components with cutting lists, offering effortless control over shop floor processes.

Plus with support for marking and label printing, CAMduct ensures all cut components are correctly routed for manufacture and site. Fast, precise, and powerful, fabrication CAMduct continues to be an essential piece of software in the industry.

Combined with your Esprit Arrow plasma cutting machine, this ductwork estimating software will do miracles for any company in the HVAC, dust extraction, insulation, and industrial ventilation sectors.

POWERFUL NESTING
Advanced sheet metal and linear nesting improves material use.

ADVANCED NC WRITING
Post processors are built in to write NC for a variety of controller manufacturer machine types.

VAST LIBRARY
Get access to the largest spec-driven sheet metal component library.

JOB COSTING TOOLS
Gain a better understanding of job costs and better understand your bottom line.

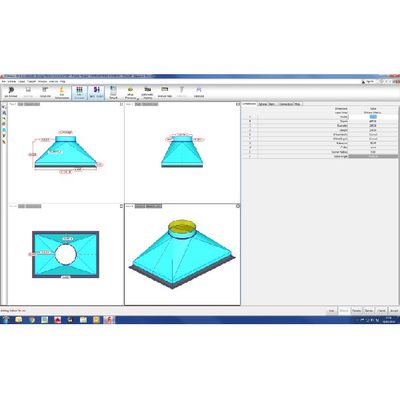

Fabrication CAMduct incorporates multiple entry methods, customisable screen layouts & clear informative fitting graphics to make job entry efficient, flexible and simple.

Fabrication CAMduct has the most comprehensive and proven fitting libraries ready to use. Round, rectangular, and oval fittings, which are suitable for seamed or welded construction, are fully parametric and highly customisable.

A full rewrite of CAMduct’s nesting algorithms has just been completed, making the automatic nesting function produce less waste and have the best productivity. CAMduct’s Green Nesting improves sheet utilisation and sheet management.

Fabrication CAMduct’s parametric fittings automatically allocate flange & seams based on the user’s specification. The additional material required is automatically added to the flat sheet developments, including connector notch and fold-marker notch details.

Fabrication CAMduct drives factory production. Reports can be generated for almost everything; worksheets for part assembly, delivery labels, workshop reports, management reports, stock control reports, BOMs, plus interoperability with third-party ERP/MRP systems.

Fabrication CAMduct allows individual manufactured pieces to be assigned labels and barcodes to enable tracking and management report generation on the status of each item.

• Operating System : Microsoft Windows® 7 SP1, Microsoft Windows 8.1, or Microsoft Windows 10 (anniversary edition) operating system.
• CPU Type : AMD Athlon™ 64 processor with SSE2 technology, AMD Opteron™ processor with SSE2 technology, Intel® Xeon® processor with Intel EM64T support and SSE2, or Intel Pentium 4 with Intel EM64T support and SSE2 technology
• Memory : 4 GB RAM or greater
• Graphics : 1,280 x 1,024 (1,600 x 1,050 or higher recommended) true color video display adapter 128 MB or greater with OpenGL-capable graphics card
• Disk Space : 2 GB of free hard drive space for installation and data storage
• Pointing Device : Microsoft-compatible keyboard and mouse
• Media (DVD) : Download and installation from DVD
• .NET Framework : .NET Framework Version 4.7
