CFlow+ is a Windows-based, Flow Calibration software package and CompuFlow Solutions’ cornerstone product. The package supports multiple platforms and is easily customized to almost any hardware configuration. It is a visual, intuitive, and easy to learn interface to your flow calibration environment. The package is a LabVIEW product, which allows for easy language translation and customization for special needs.

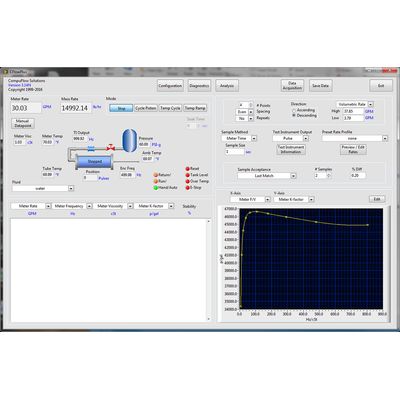

The main program is used to calibrate flowmeters. Shown below, everything is easily viewable on a single page. A process mimic shows the reading of all critical instruments at a glance to assure proper configuration before the calibration. The calibration settings configure the software to automatically select and record the desired flowrates in any sequence. As data is collected, it is listed in tabular form and graphical form on the screen. Other screens support dialog boxes offer diagnostics and password protected configuration.
New features include expanded diagnostics, log plots, more calculated variables, standard flowrate control, corrected flowrate calculations, added engineering units, new platforms, and more.
The analysis of the program will graphically display finished calibrations in a wide variety of visual modes. Single detailed graphs of all variables as well as multiple graphs allow for detailed numerical comparison of either historical or process changes. Tabular Reports are generated in a variety of modes. Saved calibration files are stored in a spreadsheet compatible format for easy importing and customization.
Data files are Excel (© Microsoft) compatible for easy customization and manipulation. Custom report formats are available in addition to the included classical report formats. Plots and diagnostics are printable on any printer. In addition, system configuration is also printable in order to satisfy configuration control requirements.
