Pulse LabShop - Fundamental Analysis Software

Since most tests can only be run once with the same conditions, its multi-analysis capability means you can capture test data and run it through LabShop’s multiple analyzers in parallel - making this capability a great strength of PULSE LabShop.

It allows you to combine any kind of analysis and recording tools to analyse your data simultaneously - based on the same raw time-data samples. Displaying consistent results in real-time, it saves a great deal of time and gives immediate confidence in the achieved test results.

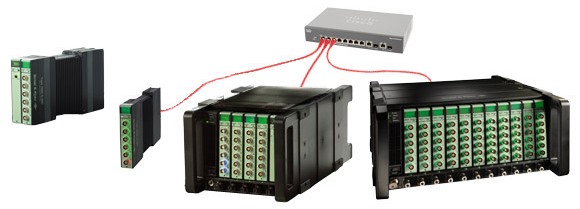

Running on Microsoft^® Windows 7 and 8 operating systems, PULSE LabShop continuously keeps pace with advances in computing power, adapting to get most out of your PC’s performance. Standard PCs can currently run PULSE LabShop and analyse 160 FFT signals or 80 CPB signals up to 25kHz, giving the possibility to use standard office PCs for measurement tests. Extremely high real-time performance is achieved with high-end PCs and LAN switches.

We recently configured a 320-channel satellite test system analysing data up to a 50kHz bandwidth / 131kHz sampling frequency. See a video about thesatellite test system.

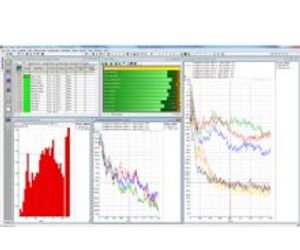

Versatile and highly customisable, LabShop can be tailored to your needs. The built-in `Smart Start` concept eases the setup of new analyses and automatically presents the results on screen, and stores often-used setup and result views for recall at the push of a button.

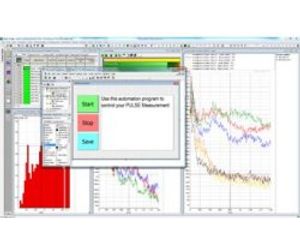

For integration with test cells and third-party solutions, PULSE LabShop includes an extensive programmable interface, allowing you to integrate it with your application. A built-in VBA (Visual Basic^® for Applications) allows easy customisation, and PULSE LabShop software is delivered with a library of demo examples for coding in Microsoft Visual Studio environment (C++, C# /.Net, Visual Basic etc.) as well as Matlab.
