APT Srl
APT - Version XGAS 232 -Gas Analysis Reports Software
FromAPT Srl

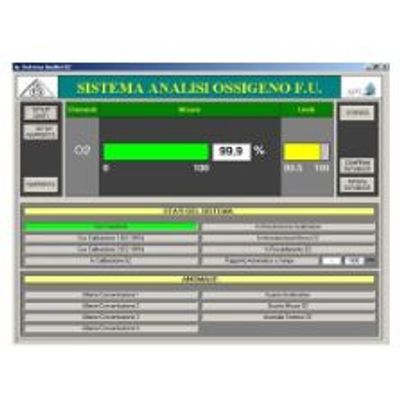

XGAS 232 is a software that provides gas analysis reports made, with simple archiving to be consulted, through the acquisition of analytical results.
Most popular related searches
gas analysis
oxygen analyzer
portable analyzer
oxygen analysis system
gas analysis software
ore analyzer
analysis system
printing system
Born for which customers?
- Mainly for all secondary medical gas producers
- For primary gas producers when they use portable analyzers
- For all those customers who have a dated but valid fixed or portable analyzer, they want to manage the analyzes in a modern and efficient way
Why was XGAS-232 born?
- To facilitate the use of oxygen analyzers during production and for the timed control of the stored gas.
- To facilitate the storage and management of measures.
-
To be simply connected to RS232 serial ports
present in the analyzers facilitating the task of the operator.
XGAS-232 is supplied on a self-installing CD and equipped with a hardware key that will be inserted into a USB port available on the PC, both desktop and portable.
PC HARDWARE REQUIREMENTS:
The connection between the oxygen analyzers and the PC can take place using the RS232 port, by means of a RS232 converter for USB port or via a one-port serial PCMCIA, these components are not part of the software equipment.
MAIN FUNCTIONS:
- Medical O2 control also in continuous.
- Acquisition of the lot number and serial number of the cylinder or tank.
- Entering the name of the responsible operator.
- Verification of the limits of acceptability of the measurement and of the alarm conditions.
- Verification of the correct functionality of the signal acquisition system.
- Printing of the test reports on a module freely configurable by the customer A4 or the list of analysis reports carried out in a certain period.
- Print the labels.
OPTIONS:
- Development of driver for analyzers with specific RS232 protocol also for analysis on different gaseous substances for which control is required.
