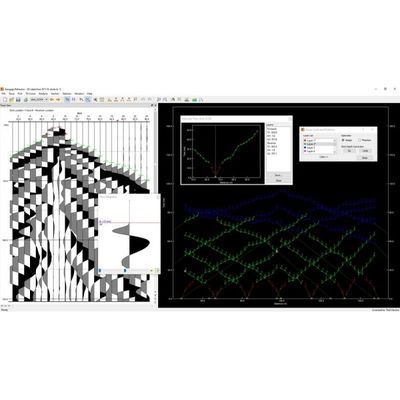

Geogiga Refractor - Version 7.3 -Seismic Refraction Data Processing Software
Highly interactive first-break picking and automatic phantom to derive layered velocity structures with GRM.
Most popular related searches
seismic
seismic data
seismic refraction software
seismic refraction
refraction seismic software
seismic data processing
seismic data software
process data software
seismic software
refraction seismic
Data input
- Import all records of a survey line at one time
- Efficiently assign geometry measured with slope or horizontal distance
- Input elevation data
- Optionally load first-break picks together with seismic data for reprocessing
- Support most third-party picks formats
Data processing
- AGC, trace balance, and frequency filtering
- Trigger delay correction
- Undo or redo multiple steps in data processing

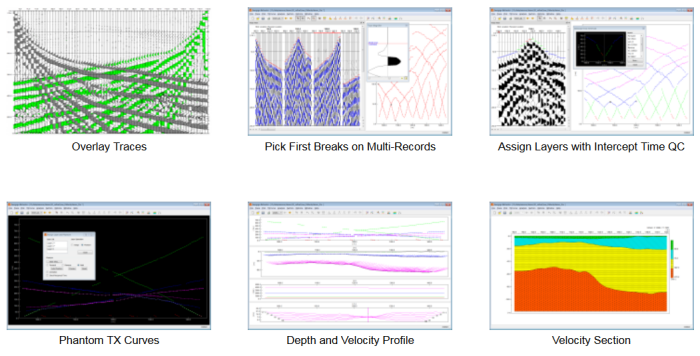

First-break picking
- Manually pick first breaks with a trace magnifier
- Automatically pick first breaks guided by velocity or waveform phase
- Test layer velocity on refraction waveforms
- Overlay shear waves of opposite polarity to assist picking
- Merge multiple picks files
Layer assignment and phantom
- Shot depth correction
- Interactively assign layers on T-X curves or seismic traces
- Check layer assignment with intercept time method (ITM)
- Automatically or manually phantom time-distance curves
- Check phantom with reciprocal time
Interpretation
- GRM, DTM, ITM, and plus-minus method
- Allow lateral variation of surface velocity
- Create lateral velocity segments with GRM
Plotting
- Plot depth section with the envelope of arcs
- Display velocity sections with colours and editable lithologic symbols
- Plot well data
- Show receiver and shot point locations on velocity section
