GGU-2D-Transient - Geohydraulic Analysis Software

• Adoption of the steady-state GW data, soil colours, etc. from GGU-2D-SSFLOW
• Consideration of phreatic lines and unsaturated zones
• Graphic-oriented input and modification of time boundary conditions, e.g. polygon courses for time-data pairs, potentials or sources
• Graphic-oriented input and modification of fixed boundary conditions, e.g. potentials, point, line and diffuse sources
• Import and export ASCII data
• Permeability function = f(time)
• Standard values for nw = f(u) for soils

Evaluation and graphical visualisation of analysis results using the supplementary program GGU-PLGW

• Coloured visualisation of GW potentials in the system cross-section
• Determination and visualisation of potentials, velocities and gradients as normal, colour-filled or 3D contours

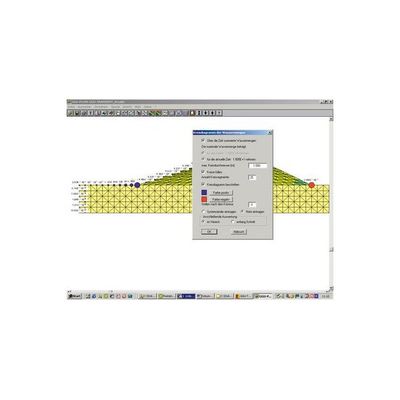

• Visualisation of discharges in a circle diagram or between two points in time
• Calculation of a groundwater-filled volume
• Determination and (coloured) visualisation of groundwater thickness, groundwatersurface distance and confined regions
• Analysis and visualisation of flow lines with distance and time increments
• Visualisation of potentials as hydrographs for individual system nodes
• Time-correlated visualisation of potentials, seepage velocities and gradients in userdefinable sections
• Visualisation of phreatic lines
• Visualisation of differential contours
• Animated visualisation of potential history over time
• User-designed output sheet
• Print or copy screen sections, e.g. for transfer to a word processor
• Integrated Mini-CAD system for additional annotation of graphics

• 7.05 (16.09.2019)
  • Product management
• 7.04 (13.09.2019)
  • Data output optimised.
• 7.03 (14.02.2019)
  • Mini-CAD: Layer designations can be defined.
  • Screen visualisation accelerated.
• 7.02 (14.03.2018)
  • Background colour for legends implemented
• 7.01 (28.02.2018)
  • Program name changed.
