NovoFORMULA - Geotechnical Correlations Software
This software is used for correlation / estimation of soil properties. Several correlations have been developed by geoscientists in order to estimate one soil parameter based on a series of other known soil parameters. For example, if you need to estimate consolidation compression index (Cc), instead of searching through several reference books, just run NovoFORMULA and find the recommended Cc values based on several equations available in its database (more than 144 correlations).
- Coefficient of Curvature (Sieve Test)
- Uniformity Coefficient (Sieve Test)
- Consolidation Compression Index
- Consolidation Re-compression Index
- Coefficient of Consolidation
- Undrained Shear Strength
- Clay Activity
- Swelling Potential
- Relative Density
- Modulus of Elasticity of Soil
- Resilient Modulus of Soil
- Modulus of Deformation of Rock
- Friction Angle
- Shear Wave Velocity
- Shear Modulus
- Constrained Modulus
- Liquid Limit
- Plastic Limit
- Plastic Index
- Porosity
- Coefficient of Compressibility
- Coeff. of Active Earth Pressure
- Coeff. of Passive Earth Pressure
- Coeff. of At-rest Earth Pressure
- Dilatometer Parameter
- Rock Mass Rating
- Time Factor-Consolidation
- Liquid Index
- Moisture Content
- Poisson Ratio
- Void Ratio
- Specific Gravity
- Saturated Unit Weight
- Dry Unit Weight
- Wet Unit Weight
- Percent fine-grained (clay & silt)
- Percent clay
- Over-consolidation Ratio (OCR)
- At Rest Earth Pressure Coeff.
- Total Overburden Stress
- Effective Overburden Stress
- Coefficient of Permeability
- Effective Particle Diameter
- Mean Particle Diameter
- Modulus of Subgrade Reaction
- Subgrade CBR
- Base Course CBR
- Pre-consolidation Stress
- Degree of Saturation
NovoFORMULA presents the distribution of correlations in a chart. This allows you to review all the values that are estimated based on various correlations, and choose a reasonable range for that parameter.
In this example, the range of consolidation compression Cc estimated based on various methods. The range varies from -0.2 (!) to +0.9 with a concentration around 0.1 to 0.3; An estimated value of Cc~0.2 may be selected for this example.

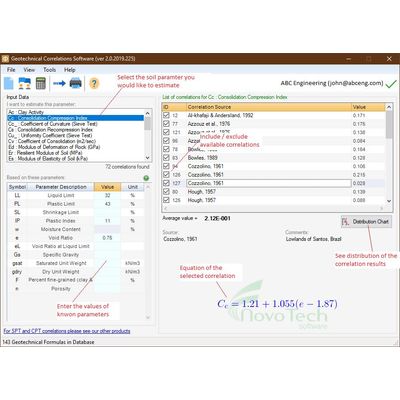

Start with entering the value of the soil parameters that are ‘known’ for your project. For example, if you have laboratory tests results for LL, PL or moisture content, start entering these values in the table. As you enter each of these ‘known’ parameters, more and more correlations will be added to the list of estimated values for your selected ‘unknown’ soil parameter.
140 Correlations!The database of NovoFORMULA includes more than 140 correlations between various soil properties.
Our software is presented with flexible licensing in mind! You do not have to sign into expensive subscription-based contracts. Every company has different budget, licensing preference and purchasing timeline. Our flexible licensing model works based on the number of software packages, and number of licenses purchased.
