Dutch Sensor Systems B.V.
Software
DSS Dashboard+ - Iot Solutions for ...

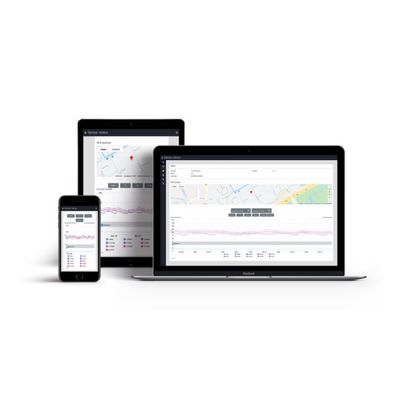

DSS Dashboard+ - Iot Solutions for Sound Level Monitoring

Live sound level measurement data. Cloud access on any (mobile) device. Reporting and automatic triggers. Geolocation using GPS. Listen and tag audio samples (when using Ranos Tag). Receive notifications about sensor health status. Use measurement data in your own backend systems.

Most popular related searches

sound level monitoring

laboratory accreditation

Frequency weightings: A, C, and Z (Z only in wired Connect App connection)
Available time weighting: F, S, Leq
Additional measurement functions: min, max
Minimum and maximum Leq, min and max interval time: Leq 1-3600 sec
Measurement accuracy according to IEC 61672-1:2014 class 1 (dB 1) or class 2 (dB 2), validated by an accredited lab using IEC 61672-3:2013 test procedures.
Detachable electret condenser microphone
Freefield microphone sound field
A frequency range of beyond 20 Hz to 20 kHz
Single level range
Noise floor below 38 dB(A) (electrical and acoustical)
Linear up to 120 dB
Integrated preamp
48 kHz ADC & DSP sample rate
24 bit ADC & DSP bit depth
FIR filter for factory microphone calibration
Test and calibration functionality in connect app
0,1dB measurement resolution

DSS Dashboard+ - Iot Solutions for Sound Level Monitoring

Audio Specs
