Isograph - Version RBD -Reliability Block Diagrams in Reliability Workbench

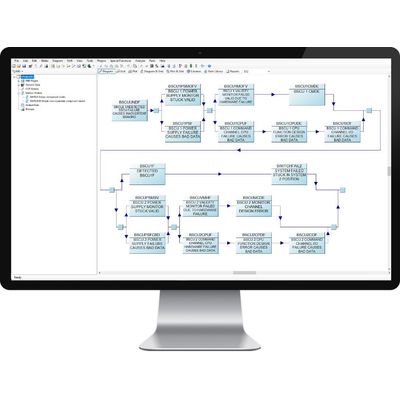

Download Reliability Workbench and access our powerful RBD module used in high profile projects at over 1200 sites worldwide. Quickly build models using drag and drop and libraries. Fast and accurate system analysis. Fully integrated with FMEA and Markov analysis. Automatic conversion to fault trees. Importance and common cause analysis included. No limit to the number of blocks or hierarchical levels. Multiple standards support including ARP 4761, IEC 61508, ISO 26262. Integrated failure data libraries. Directly link to hazard logs for verification. Import/export facilities to databases and spreadsheets. Our software has been in continuous development since the 1980s and is the recognized standard for safety and reliability professionals.
Accurately Predict System Reliability
Our powerful minimal cut set generator ensures that dependent RBD structures are modelled efficiently and accurately. Determine the reliability and availability of complex systems and identify weak points with importance analysis
Highly Integrated
Link to prediction, FMEA, Markov models, failure data libraries and hazard logs for safety assessment verification. Automatically create fault tree structures
Enterprise Level Safety Analysis
Perform safety analysis at an enterprise level using the Isograph Enterprise Database. Maintain projects and libraries in a security controlled environment
Our Credentials
Isograph`s software is used in over 1900 companies, across 12,000 sites in 75 countries. We have software certifications with SAP and are IBM Business Partners.
Premium Support
With support engineers located in the United Kingdom and the United States with same day response times our support is second to none.
Industry Standards
Our software complies with recognised standards, including but not limited to ISO 26262, IEC 61508, AIAG & VDA, ISO 21434, ARP 4761, SN29500, IEC 61709, FIDES, DO-356 and ED-203.
Development
Our software has been in continuous development since 1986 with upgrades and features driven by users and industry standards.
