CFMDesign - MBD-based model design assistant system CFMDesign
After the MBD technology is used in the current large-scale equipment design model, the geometric information of the part model and the non-geometric information are large, which increases the file size and occupies more computer memory, resulting in cumbersome part information viewing and difficulty in viewing large model information. A series of problems such as coordination difficulties, CFMDesign uses a scalable language to form a set of functions, compresses the solid model and MBD information, and forms a full information lightweight model of the large equipment model, solving the above series of problems.
The system improves the display and processing efficiency of the 3D model, and the application of the 3D model extends to all stages of the product life cycle. Through unified tools, standardize the MBD information content of enterprises, improve the quality of enterprise parts design, and provide strong guarantee for the development of enterprise models. This system is suitable for enterprises that use CAD (now supporting CATIA) software for design and manufacture, including large-scale assembly manufacturing such as aviation, aerospace and automobile.
Product concept
This product is a professional CAD model design assistant system. It is convenient for large mechanical parts design process. Designers define, manage, view and edit MBD information, quickly design and assemble solid model based on 3D features, and approve and view models. Etc., to achieve a higher degree of automated assembly design.
- Define and manage MBD information

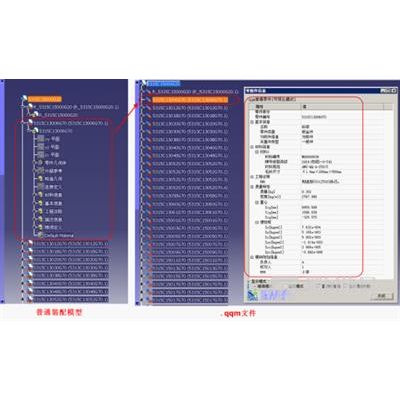

- Realize complex assembly model holographic lightweight
- Browse, check and output based on holographic lightweight model
- Fast on-demand loading of complex assemblies
