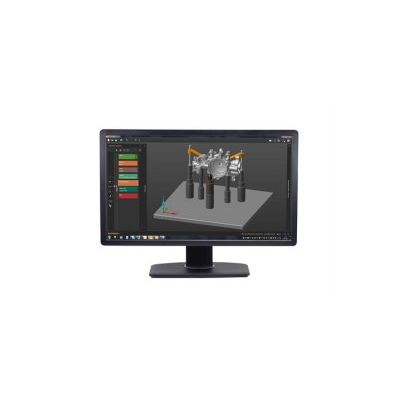

MODUS - Version 2 -Metrology Software
Based on the established and highly capable MODUS platform with support for Renishaw`s suite of 3- and 5-axis CMM sensor technologies, MODUS 2 has been designed with usability in mind. The innovative interface is simple for new users to learn and faster to program, resulting in unprecedented levels of productivity with or without a CAD model.
MODUS 2 has been designed with usability in mind. The innovative interface is simple for new users to learn and faster to program, resulting in unprecedented levels of productivity with or without a CAD model.
Based on the established and highly capable MODUS platform it offers optimal support for Renishaw`s suite of 3- and 5-axis CMM sensor technologies.
From simple manual CMM operation through to complex part measurement on multi-axis systems, MODUS 2 adapts automatically and only offers functionality relevant to the current task.
The user experience is designed to be identical whether the software is connected to a ‘live` CMM or working in an offline environment where full simulation with speed control allows measurement sequence development and visualisation.
The MODUS 2 metrology software suite is a future-proofed investment, guaranteeing availability of the latest sensor and controller technology advancements from Renishaw. This will include future sensors for the 5-axis measurement product range, which delivers unprecedented speed and measurement flexibility, whilst avoiding the speed versus accuracy compromises inherent in conventional techniques.
- Full support for I++ DME compliant metrology controllers, including Renishaw`s UCC range of universal CMM controllers
- Support for 5-axis measurement systems
- OSM technology enables the automatic creation of efficient, collision free, motion paths around the part
- Bespoke measurement strategies can be created and shared with other users to ensure consistent measurement of all parts, regardless of the programmer
- CAD-driven offline programming, with support for neutral formats of IGES, STEP, Parasolid® and VDA-FS
- High quality integration with the CATIA® (v5 and v4), Siemens® NX™ (previously Unigraphics®), Pro/E® and SolidWorks® CAD/CAM solutions
- Full motion simulation and collision detection, including 5-axis moves
- Native DMIS support
- Certified mathematical algorithms
- Powerful text and graphical reporting
- Flexible output of results data including certified Q-DAS®
