AvMap - Version A2 ADAHRS -Module for EKP V

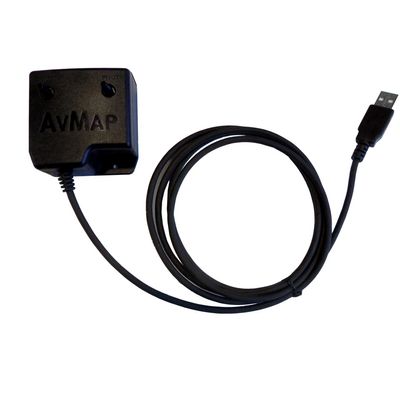

The A2 ADAHRS module, designed by AvMap, significantly extends the functionalities of the EKP V system. Ideal for light-sport, ultra-light, and experimental aircraft, this compact and lightweight module (weighing only 1.8 oz) integrates solid-state 3-axis gyroscope, accelerometer, magnetic field sensor, and air data sensor. It delivers critical flight data including airspeed, altitude, attitude, and heading directly to the EKP V`s 7-inch display, effectively transforming it into a complete Primary Flight Display. The system connects to the aircraft`s Pitot-static system via USB and can be installed in any orientation following a proper calibration. Additional features comprise integration with Terrain Awareness and Warning System (TAWS), wind indicator with wind components, and a customizable HSI display linked to flight planning functions. Altimeter, heading references, and specific V-speed reference values can be set as per aircraft requirements.
A2 ADAHRS provides a Air Data, Attitude and Heading Reference System to your EKP V.
Designed for light-sport, ultra light and experimental aircrafts, A2 ADAHRS is a compact and light module (only 1.8 Oz ) packed with solid-state 3-axis gyro, accelerometer, magnetic field sensor and air data sensor

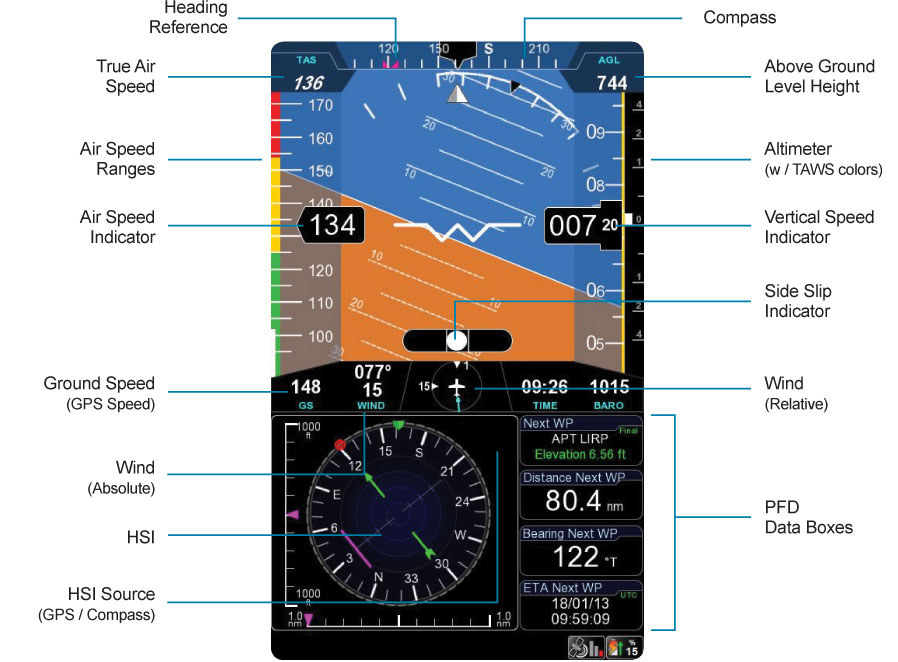

When connected to the A2 ADAHRS module, the EKP V turns into a full-featured Primary Flight Display providing:
- Airspeed and Altitude from Pitot-static system
- Attitude, side slip and heading information Integration of TAWS into the PFD with AGL Altitude indication
- Wind indicator with wind components
- Clear HSI display linked with EKP V flight planning function
- Customizable data fields
- PFD settings: Altimeter reference, Heading reference, Aircraft
- Specific V-speed reference value.
A2 ADAHRS connects to the aircraft Pitot-static system and to the docking station via USB and provides information that are displayed on the EKP V LCD.
A2 ADAHRS can be installed in any orientation, as long as a proper calibration procedure is performed.
Hardware
- Dimensions: 70 x 60 x 35 mm (2.76” x2.36” x 1.38”)
- Weight: < 50 g (1.8 Oz)
- Operational Temperature: -25°C to +85°C / -13°F to +185°F
- 3-axis gyros, accelerometers and magnetometers:
- Acceleration range (3 axis) +/- 8 g:
- Rotation Range +/- 1600 deg/s:
- Air data sensors:: Range 10 to 215 kts, -1000 to 40000 ft
- Advanced data fusion capability:
- USB Interface (1.5 m cable):
- UAV Navigation® technology inside
Software
- Airspeed and Altitude from Pitot-static system
- Attitude, side slip and heading information
- Integration of TAWS into the PFD with AGL Altitude indication
- Wind indicator with wind components
- Clear HSI display linked with EKP V flight planning function
- Customizable data fields
- PFD settings: Altimeter reference, Heading reference, Aircraft
- Specific V-speed reference value
