GEOSOFT - Version CPT-pro -Multi-module Program for Comprehensive Analysis

CPT-pro can be applied for different formats of CPT data. You do not need to use any converters to open your files. Additionally, Import/Export procedures of CSV, GEF and AGS formats make CPT-pro totally universal.

In spite of number of implemented correlations, an add-on Formula Editor allows user to define own interpretation functions, so the number of correlations you can use is simply unlimited.

Procedures for offshore soundings, including Down-The-Hole testing and automatic joining separate datafiles into ones are implemented.

Included Batch Processing and Batch Printing procedures make data reduction and interpretation extremely efficient and time saving.

Using the graphic tools of CPT-pro, particularly CAD type ones implemented in CPT-CAD and CPT Explorer modules, you may generate high quality and complete geotechnical and geological documentation. The built-in export procedures enable saving the drawings (maps and sections) created by the program in the form of DWG and DXF files, that enable further proceeding - if necessary - in other graphic programs, like  AutoCAD, MICROSTATION etc.

Borehole logs and results of field surveys can be saved in Geo DB database and documented in relevant logs. With this option CPT-pro can be used for generation of complex geological and geotechnical documentation.

System requirements: Windows 7/Windows 8/Windows 10

CPT-pro is a multi-module program for the interpretation of static CPTU soundings and other field tests, such as DMT dilatometric test, SCPT seismic probing. The mutual relations between the individual modules and the scope of their operation are presented in the picture on the left.

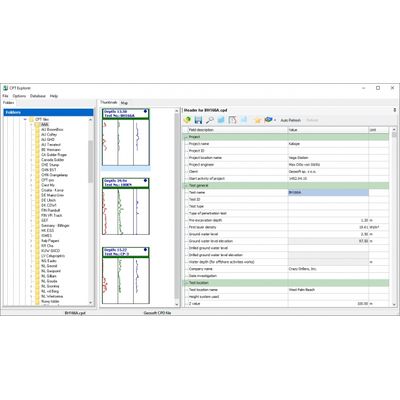

Thumbnails with graphs of all tests saved in selected directory are automatically generated. To generate header information highlight selected thumbnail. To select test for further analysis just double click it.

Selection of CPT test for further interpretation may be realized by double click of relevant symbol on  map.

Wersion with CPT-CAD module allows to insert DWG / DXF map as background, edition of that map and printing.

New graphic component allows to generate high quality printouts. layout of log i.e. number and location of graphs, location of header table, line characteristics etc. are fully controlled and customizable by operator.

Additional functions like tracking of parameter values and tracking classification result (individual and cloud) allows detailed analysis.

Formula Editor implemented in CPT-pro allows generate own complex conditional interpretation formulas, in which equations may vary depending on classification result, depth and values of selected parameter.

All mathematical functions used in engineering practice are available.

Analysis of dissipation tests. All relevant dissipation times like T20, T30 etc. are automatically calculated and presented on dissipation log.

Automatic joining files from Down-The-Hole tests.

Offshore Down-The-Hole test result consist of a number of short tests (usually around 3 m) separated by drilled sections. Implemented Automatic joining procedure generates one continuous CPTU log taking into account the location of zero tests.

The program enables full interpretation of DMT (Marchetti Dilatometer Test) tests according to the methods and correlations developed by prof. Silvano Marchetti. Results may be presented on separate DMT sounding logs or in combination with the selected CPT test.
