OGP - Version MeasureMind 3D -MultiSensor Metrology Software
MeasureMind 3D MultiSensor is a sophisticated metrology software designed to facilitate precise measurement of complex parts. It supports a variety of sensors and rotary indexers, making it suitable for measuring a wide range of geometric and free-form shapes using OGP measurement systems. This software allows the integration of data from multiple sensors to conduct comprehensive 3D measurements of elements such as cylinders, cones, spheres, planes, and intersections, in addition to 2D features. MeasureMind 3D is equipped with advanced datum setup capabilities, including datum leveling from any plane or feature with an axis, and datum origin from features with a single location. Users benefit from interactive graphical modeling, enabling visualization from all perspectives with options for orthographic or isometric views. Suitable for a range of users, the software is compatible with SmartScope Flash CNC, Vantage, and ZIP systems.
MeasureMind 3D MultiSensor metrology software makes it easy to measure your most complex parts. Intrinsic support of any number of sensors as well as single and compound rotary indexers lets you measure anything from simple geometric forms to complex free-form shapes on properly configured OGP measurement systems. Use data from any sensor or combination of sensors for 3D measurement of cylinders, cones, spheres, planes, and intersections, in addition to 2D features and relationships.
MeasureMind 3D MultiSensor provides a highly flexible datum environment. This includes datum leveling from any plane or feature with an axis, datum origin from any feature with a single location, and datum rotation from any point relative to the origin.

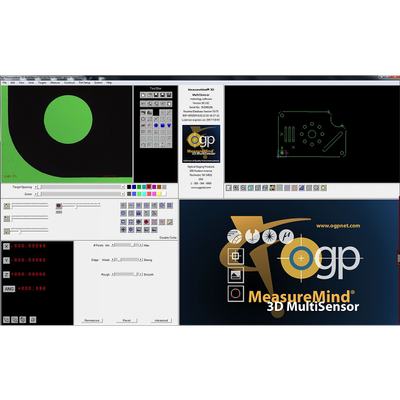

Interactive graphical models of the part support extensive quantitative numerical results. Selectively display measured features, nominal features, and/or raw data points. Choose orthographic or isometric views. See the part model from every perspective with interactive rotation and one-click panning and zooming.
People of all skill levels can use MeasureMind 3D MultiSensor for complete 3D measurement, on SmartScope Flash CNC & CNC, Vantage, and ZIP systems.
