Xylem Sanitaire - OSCAR Process Performance Optimizer

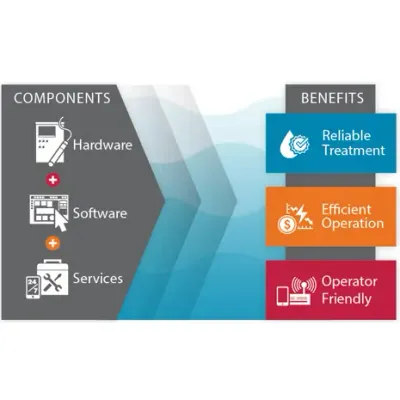

The Sanitaire OSCAR process performance optimizer is a customizable, integrated biological process control software and hardware system that’s used with Xylem’s treatment equipment to help a plant meet their desired performance and operating budget. The OSCAR system is the operator’s helper, providing: Efficient operation by dynamically adapting to changing conditions to optimize contaminant removal for guaranteed effluent quality. Reliable treatment to help optimize equipment operation resulting in energy savings and reduced chemical consumption. Operator friendly intuitive user interface and remote accessibility, combined with the transparency of real-time monitoring and electronic help features built right into the Human Machine Interface (HMI).
The Sanitaire OSCAR system comes standard with a control panel including PLC and HMI, aeration controller, and service. Additional customizable hardware and software components and services are available. See our System Components tab for more information and learn more about what some of the options below can do for you.
When it comes to hardware:
- OSCAR knows reliable controls. All control panels are programmed and tested prior to shipment, using state of the art components that are well known throughout the industry.
- OSCAR knows security. To ensure peace of mind when accessing your control system remotely, the OSCAR system uses a highly rated EWON webport.
- OSCAR knows electronic help features. The HMI includes alarm management and troubleshooting, process trending, maintenance alerts and O&M manuals all accessible directly in the GUI and available remotely, giving operators the tools needed to successfully and efficiently operate their wastewater treatment plant.
- OSCAR knows instrumentation. The OSCAR system uses the most advanced Xylem brand sensors from WTW YSI and MJK for reliable monitoring.
When it comes to software:
- OSCAR knows biomass control. The optional SIMS controller monitors and controls sludge wasting to maintain a stable biomass resulting in consistent settling characteristics, energy optimization and reliable, high-quality effluent.
- OSCAR knows nutrient control. The optional nutrient controllers (ammonia control, nitrate control, phosphorus control, and/or NURO control) measure actual effluent nutrient concentrations to optimize aerobic, anoxic and/or anaerobic conditions as required to meet permit, resulting in energy savings of 20% or more.
- OSCAR knows aeration control. The standard aeration controller adjusts blower and valve operation of the aeration system to stably maintain the required dissolved oxygen concentration, resulting in minimum energy consumption.
When it comes to service:
Each OSCAR system is engineered to order to meet project specific needs and all panels are tested prior to shipment. At Xylem, our biological process experts works with consulting engineers, end users, contractors and system integrators to ensure proper design of the entire wastewater treatment plant.
- Real-time wastewater process measurement and control system
- Aeration control, nutrient control, and biomass control
- Intuitive Graphic User Interface (GUI) and remote accessibility
- Maintained and stabilized effluent quality while eliminating excessive energy consumption
- Assembled, programmed and tested hardware and software prior to shipping
- Extended warranties and process guarantees
- Advanced plug and play sensors from WTW and YSI
Process Control Modules: OSCAR Process Performance Optimizer
- Aeration control: DO control, Valve control, Pressure/Most Open Valve control
- Nutrient control: Ammonia control, Nitrate control
- Biomass control: Smart SRT control, SRT control, MLSS control
- Chemical dosing control: Phosphorus control
- SBR specific control: Hydraulic control, Decant control, Aeration control, Nutrient removal control
Master Control Panel: OSCAR Process Performance Optimizer
- Included hardware: Control cabinet, Programmable Logic Controller (PLC), Human-Machine Interface (HMI), webport, I/O modules, indicator lights, switches
- Power equipment: Motor starters and variable frequency drives can be provided as panel mount, wall mount, and/or housed in motor control center.
- HMI: Beckhoff industrial PC, Aspect Ratio 16:9 and Screen size 15"
- PLC: Allen Bradley or Siemens
- HMI software: Indusoft
- Standard ratings: Nema 12/IP55, UL/CUL, CE
General Information: OSCAR Process Performance Optimizer
- Applications: Conventional Activated Sludge, SBR, Oxidation Ditches, MBR, Aerobic Digester
HMI Features: OSCAR Process Performance Optimizer
- Electronic manuals: Equipment O&M manuals, Operational Description, Functional Design Specification
- Remote accessibility: Secure Client for in-plant connections, Web Client for outside of plant connections and Smartphone Client from a tablet or phone
- Translation available: Yes
- Equipment maintenance dashboard: Yes
- Alarming: Color-coded alarm prioritization and context sensitive alarm troubleshooting guide
- Setpoint save/restore: Yes; up to four configurations
- Process variable trends: 10 days for main procses variables, 1 years for biomass calculated variables
- Process monitoring and safety nets: Process safety nets, sensor safety nets
Process Instrumentation: OSCAR Process Performance Optimizer
- Terminal/Controller: YSI/WTW model 2020 IQ Sensor Net
- Dissolved Oxygen (DO): YSI/WTW model FDO 700 IQ
- Total Suspended Solids (TSS): YSI/WTW model ViSolid 700 IQ
- Ammonia and Nitrate: YSI/WTW model VARiON Plus 700 IQ
- ORP: YSI/WTW model SensoLyt 700 IQ
- pH: YSI/WTW model SensoLyt 700 IQ
- COD/BOD/TOC/DOC: YSI/WTW model UV-VIS spectral sensor
- Sludge blanket level: YSI/WTW model IFL 700 IQ
- Turbidity: YSI/WTW model VisoTurb 700 IQ
- Conductivity: YSI/WTW model TetraCon 700 IQ
- Orthophosphate analyzer: YSI/WTW TresCon analyzer
- Ammonium analyzer: YSI/WTW TresCon analyzer
