Pisys - Version WinCAT -Catenary Mooring Analysis Software
WinCAT is catenary analysis software for hanging cable systems - such as offshore moorings, umbilicals and flexible risers. WinCAT makes setting up and managing catenary data extremely easy, even for someone unfamiliar with cable systems.
The system has been developed by experts in the field to bring sophisticated and complex catenary analysis to any offshore practitioner.
WinCAT is ready to perform both onshore and offshore in design analysis, installation studies, anchor laying, rig moves, sub-sea operations and many more applications.
GIVING YOU FULL CONTROL
WinCAT Software In DetailThe create new data sequence, steps through the following series of data entry windows: Project Details, Catenary Setup, Line Composition, Section Details, Line Deployment, Catenary Lines.
The Dashboard shows all existing projects within the system. Selecting a project will load the project edit screen with the Catenary Lines summary allowing the data to be modified, or the catenary results to be computed. From here a user can create a new project which leads into the sequence of data entry windows which allows new catenary lines to be set up, or import a file which will create a new project with information and Catenary Line setup extracted from the file.
Catenary Setup allows for setting up or editing the details of a catenary line. WinCAT can handle the data for any number of catenary lines. All lines are Enabled by default. If the enabled check is cleared, then the catenary line becomes dormant. The data is retained, but no results are computed or are available for printing.
Multiple line sections with different properties for each
Support buoys positioned at any points along the line
Workboat option to handle line installation and laying
Sloping seabed and ground friction can be modelled
In-built database of line properties including chain, wire, etc.
User additions to database for lines, buoys and anchors
Switchable units (Metric & Imperial) for input and results
Comprehensive results presented in tabular format

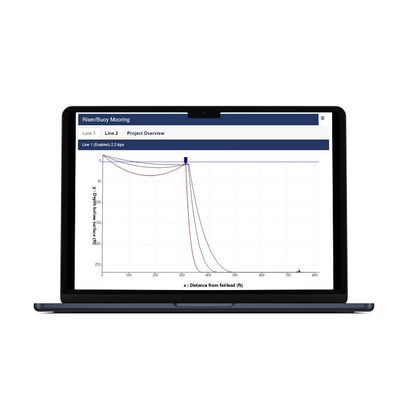

Graphic catenary plots with multiple cases per plot
Interaction with plots for line details and measurements
Easy to export results to Excel and PDF format
Collaborate with others via email from within the website
