3DynaPL - Software For Visualization Of 3D Objects
FromDynaflow, Inc.

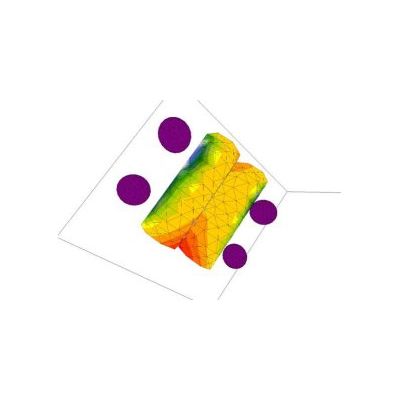

3DynaPL, a three dimensional plotting package available for Windows OS. It enables the user to view 3D wire frame and color contour plots of objects. The 3D object can be manipulated, rotated, zoomed, and triangular elements of the shape can be shaded in color representing the amplitude of a selected quantity, such as velocity, pressure, ...etc.
Most popular related searches

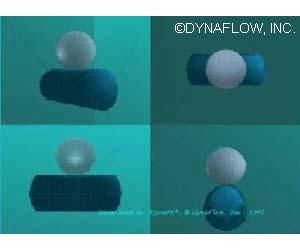

3DynaPL, can be used as a preprocessor and a post-processor for 3DynaFS. It can show time evolution of a deforming shape, such as a free surface, a bubble interface, or a deforming structure.
Needed input are one file or a set of successively evolving coordinates files, and a connectivity file.
Some functions of the 3DYNAPL
- Moving object
- Rotating object
- Zooming object
- Shading object
- Cross-cutting the object
- Checking mesh and connectivity
- Checking normals
- Checking node and panel numbers
- Hiding back of the body
