GL Optic - Spectrosoft

SHARE

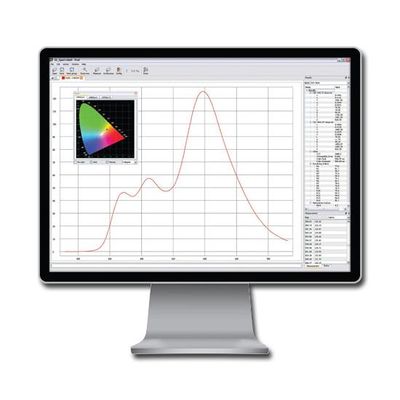

GL Spectrosoft is well conceived, intelligent software written for GL Optic’s measurement instruments. The software is “the key” for all the advanced features of the spectrometers. It turns raw data from devices into powerful information. The software provides data in well presented and described windows (tables) and also in an easy to interpret graphical schematic view. Depending on the purchased license level (Basic, PRO or Lab) GL Spectrosoft can calculate, evaluate, present or report such parameters as: CCT, chromaticity error, peak wavelength, dominant wavelength, CRI, color coordinate values according to CIE standards, ISO, Metamerism Index, PAR, PPF, PPFD, photobiological safety, binning, MacAdam ellipses and much more.

Most popular related searches
optical spectrometer
optical monitoring system
spectrometer
photometric
optical monitoring
colorimetry
spectrometer probe
optical instrument
calibration instrument
safety monitoring

The software gives a user the opportunity to experiment using collected data: to test them (e.g. PAS/FAIL), to analyse them according to international standards (CIE, ISO etc.), compare them with other data (reference window) and make calculations using different parameters (e.g. counting luminous intensity values).

  • radiometric values: irradiance , radiance , radiant power and radiant intensity
  • photometric values: luminance , illuminance , luminous intensity and luminous flux
  • colorimetric values: cxy chromacity, peak wavelenght, dominant wavelength, purity, color rendering, collerated color temperature, CRI index and Metamerism Index.
  • photosynthetic active radiation 400-700 , PPF and PPFD
  • photobiological safety

  • measurement of LEDs compliant with CIE 127:2007
  • absolute or relative measurements
  • flexible data interpretation
  • helpful tools for easy analysis and interpretation of measured spectra
GL Spectrosoft is a smart tool, which operates with all GL Optic spectrometers, optical spheres and probes. The program always uses the right calibration file for the instruments (the software recognises a special coded system held in the measurement adapters) so the user is always sure that the program is showing absolute values (e.g. The measurement made with the set GL Spectis 1.0 and GL Opti Sphere, shows values of luminous flux in lumens) GL Spectrosoft could be configured and adapted to client needs (e.g. you can choose some parameters always available in quick window “selected results”, you can built your own template of reports or create your own layout according to the customer’s needs). The system stores all the measurement data which can be used in the future for comparison with new measurements values. GL Spectrosoft is always developing and our support team constantly adds new features. The program works with operating systems such as Windows (also Windows 10) and Mac. Contact one of our product specialists.
