Speed - Version LDS-1070 -Master Station Software
SPEED Master Station is a personal computer based system that provides management of Field Recorders and NIALMS (Non-Intrusive Appliance Load Monitoring System) processing to generate end-use interval data. Recorder data is retrieved by Master Station over a standard phone line (or through walk-up collection using Field Station). The Master Station plots edge transition data on a watt-versus-VAR graph. Transitions from individual appliances form clusters of points on the watt-VAR graph which indicate the presence of a unique load. Simultaneous and missing edge transitions are reconciled through advanced algorithms and end-use profiles are created for each load prior to load naming. By matching these load profiles a positive identification is made and the specific appliance is tagged by name.
- Manages recorder configurations, call schedules, locations, demographic information
- Processes recorder data into individual load interval data
- Performs as server and database manager for
- energy consumption data
- temperature data
- Analysis Station queries
- other queries
- Runs within Windows NT environment

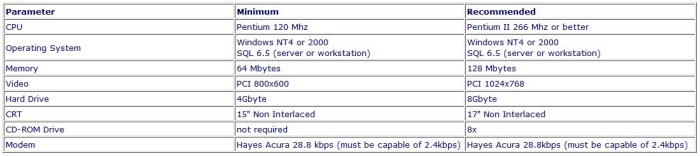

The Master Station software can be installed on standard personal computer workstations with the necessary resources. The minimum and recommended hardware requirements for running the Master Station software are:
SPEED™ Master Station is a proprietary Enetics software application which requires Microsoft Windows NT and SQL Server. Microsoft Windows NT and Microsoft SQL software are not included with Master Station software. All operations of the Master Station Software use the standard Microsoft Windows conventions for user interface.
