Oros - Version ORBIGate -Turbomachinery Vibration and Rotordynamics Software
A dedicated software module for rotating machinery vibration: troubleshooting, diagnostics as well as acceptance works
- Orbits & Shaft Centerline
- 1x Bode & Waterfalls
- Multiplane Balancing
- Torsion
- Unattended Monitoring
- ODS & Modal
- Online & Offline
- Proximity probes
- Accelerometers direct connection
- Up to 32 channels / system
- Removable recording SSD disk
- A direct ADRE 408 replacement

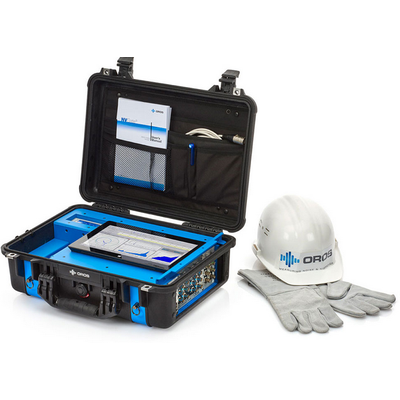

ORBIGate is the dedicated software module for industrial rotating machinery vibration during diagnostics as well as acceptance works. Easy to use, it provides all the tools to bring the highest level of set-up simplicity and efficiency to the user.
Featuring simultaneous portable acquisition on up to 32 dynamic channels, an entire machine train can be tested during transients or steady states. The system acquires and analyzes orbit, Bode, shaft and casing vibration. Typical graphics are orbits, shaft centerline, spectra, Bode and polar diagrams, trends, waterfall, overall peak to peak, 1X (amplitude and phase). In a typical situation the OROS instrument is connected to the outputs of the monitoring system as shown in above figure.
Find out how alarm trigger is a key feature to avoid waiting time for industrial rotating machinery vibration analysis!
is the dedicated software module for industrial rotating machinery vibration during diagnostics as well as acceptance works. Easy to use, it provides all the tools to bring the highest level of set-up simplicity and efficiency to the user.
Featuring simultaneous portable acquisition on up to 32 dynamic channels, an entire machine train can be tested during transients or steady states. The system acquires and analyzes orbit, Bode, shaft and casing vibration. Typical graphics are orbits, shaft centerline, spectra, Bode and polar diagrams, trends, waterfall, overall peak to peak, 1X (amplitude and phase). In a typical situation the OROS instrument is connected to the outputs of the monitoring system as shown in above figure.
Find out how alarm trigger is a key feature to avoid waiting time for industrial rotating machinery vibration analysis!
- Diagnostics tools: Scalar table, spectra; waterfall, Bode, Polar, orbit, shaft centerline, full shaft motion, full Spectrum etc…
- User friendly set-up: designed by users for users.
- Connect the system to the online rack or directly to sensors.
- Turbomachinery sensors: Proximity probes, Velocity, Accelerometers and other process data
- Real-time acquisition, post analysis (based on raw signal recording) and data navigation
