Version EnvidasFW -Environmental Data Acquisition Software
ENVIDAS is an intelligent, multi function, high-performance data acquisition system. It is designed with affordability and versatility in mind.ENVIDAS is a state-of-the-art system that uses nonproprietary desktop or industrial PC computer components to run flexible, A wide variety of data acquisition cards may be installed.ENVIDAS software features pull-down windows based menus. Only basic knowledge of PC software operations is required for system operation.All hardware components are open stock items available from multiple suppliers.As the name implies, ENVIDAS is designed to help you automate your environmental data acquisition system projects and make your job easier. The system requires an initial setup.
The system requires an initial setup. Then it starts to run automatically, acquiring measurements, controlling processes and transferring data to the central computer room. The system has the capability of detecting errors and autonomously transmitting alarms to the central. Data values can be filtered and collected according to user-defined criteria. Local on screen display and printing is supported.
A typical ENVIDAS system contains the following in a single industrial 4U chassis:
- PC-based data acquisition
- AMD Athlon or P IV processor
- 2 - 16 serial ports
- One parallel printer port
- Standard PC keyboard
- SVGA video display
- 16 - 64 analog inputs
- 16 digital outputs
- 16 digital inputs
- 6 USBx2 Ports
- Real Time calendar clock
- Flexible easy-to-use menu driven software
- Rugged rack mountable PC-based platform
- Store 15 Seconds average data for 31 days
- Store basic average data for more then 10 years
- Data collection of smart analyzers via RS232C
ENVIDAS has been used in support of data acquisition and control in the following areas:
- Ambient Air Quality Monitoring.
- Continuous Emissions Monitoring.
- Meteorological Monitoring.
- Water Quality Monitoring.
- Toxic Gas Monitoring.
- Radiation Monitoring.
- Noise Monitoring.

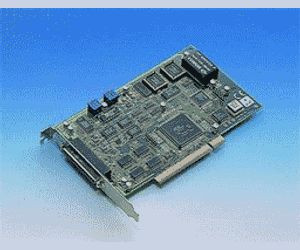

The basic ENVIDAS system supports 16 analog and digital inputs, 16 digital outputs and two(2) RS232C communication ports.
- 16 single-ended
- Resolution: 12 bits
- Maximum data throughput: 38 kHz for all input ranges, acquisition every second
- Digital input/output: 16 channels TTL compatible inputs and outputs
- Input range[V]: Bipolar:± 10, 5, 2.5, 1.25, 0.625
- Conversion time: 10µs

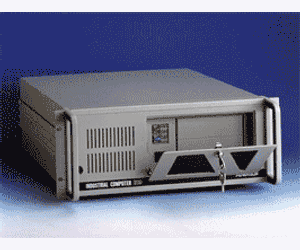

- 19” rack mount case meets the EIA RS-310C standard
- ATX or Back plane mother board
- Field-replaceable 250-watt power supply
- Shock-absorbing mounts cushion disk drives
- Dual push-pull cooling fans generate positive air pressure inside the chassis
- Filtered cooling air reaches all cards
- Removable air filter
- Lockable door for rustproof integrity and running security
- Hold-down clamp protects plug-in cards from vibration
- Full line of industrial CPU cards
ENVIDAS supports automatic calibration control, recording and correction. The software generates calibration and data reports at different time intervals, and can transfer data via several communication devices

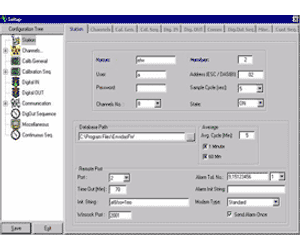

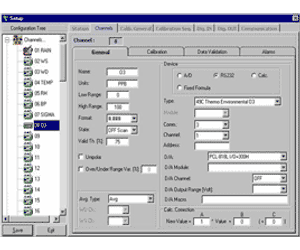

ENVIDAS software is a flexible, easy-to-use, turnkey application software that turns a PC with a data acquisition card into an intelligent environmental data acquisition system. It has the following features:
- Multi tasking software - no data is lost during polling
- Multi-tasking software allows user interaction without interrupting data collection
- Run under Windows 98/NT/2000
- Handles up to 64 analog measurement inputs
- Handles 16 digital input channels
- Handles 16 digital output channels
- Supports up to 8 RS232C channels
- Remote access for upload or download of configuration, calibration start, viewing current measurements, and remote control
- Measuring rate: every 1, 2, 5, and 10 seconds
- User selected average: 1, 5, 6, 15 or 60 min are typical
- Dynamic display of instantaneous values in engineering units, voltages, or any calculation
- Password protection
- Calculations for math and meteorological statistics
- 15 Seconds average data storage for 31 days
- Automatic calibration correction and control via relays, calibrators or analyzer serial commands

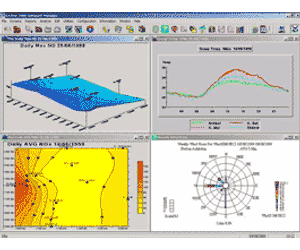

- Daily, weekly, monthly, periodic data listing textual and graphical reports

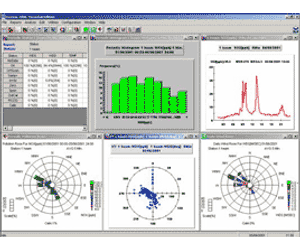

- Histogram, Wind Rose, Pollution Rose, Polar and Event Analysis reports.
- Calibration report
- System fail report
- Analyzer Digital status information report
- Manual data transfer by using a floppy disk
- SQL Database

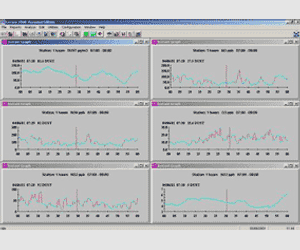

- Real-Time instantaneous values graph
- Communication via RS232C to the smart analyzers (Multi-drop & Star connection available)
- Collection and reporting of analyzer status information
- Bypass feature allows the user to have direct analyzer connection from a remote location
- Calibration sequence control via RS232C and/or digital outputs
- Automatic alarm messages via GSM SMS and/or Terminal Display
- Optional Bill Boards display support
- More than 10 years of Data Base Information
- Connection with Software Manager data management system via telephone line (POTS, cellular, or leased line), direct serial or radio
- Error checked data transfer to Software Manager
The following smart analyzers are supported by ENVIDAS RS232C communication protocols:
- Environment S.A. - M Series
- Thermo Environment - C Series
- Monitor Labs - 9400 Series
- API - 100A Series
- R&P - TEOM
- Horiba - AQM Series
- Campbell - CR-10X, CR-23X
Other RS232C protocols available upon request
