Version GENNECT Cross - General Measurement Function App

0

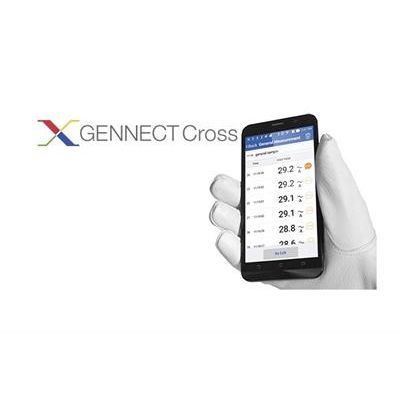

GENNECT Cross is a free app that connects Hioki instruments to your smartphone or tablet using Bluetooth wireless technology. Simply pair compatible instruments like to your mobile device to easily record data and create reports.

  • Connect instruments to your smart phone or tablet
  • Save all measured values on your smart phone
  • Use the logging function to save measured values automatically at a set interval
  • Use the simple oscilloscope function to view current and voltage waveforms on your smart phone (CM4372/ CM4374, and CM7291 only)
  • Continuously measure the internal resistance and voltage of lead-acid batteries (BT3554-01 only)

FOUR FUNCTIONS THAT LET YOU LINK THE APP WITH A MEASURING INSTRUMENT: STANDARD MEASUREMENT

Touch the app’s [Hold] button to hold measured values and capture data by touching the [Save Measured Value] button. If connected to an instrument with a hold function, you can use the instrument’s HOLD feature to trigger the app to capture the measured value.

FOUR FUNCTIONS THAT LET YOU LINK THE APP WITH A MEASURING INSTRUMENT: LOGGING

You can specify a logging interval (from 5 sec. to 24 hr.) and then capture data while communicating with the instrument. You can shrink and enlarge graphs of measurement data on the handset. You can also display data for up to eight channels, and you can display statistical data.

FOUR FUNCTIONS THAT LET YOU LINK THE APP WITH A MEASURING INSTRUMENT: WAVEFORMS

The simple oscilloscope function is handy if you think the measured values you’re getting may be anomalous. You can send waveform data such as motor starting current to the app by linking it to the instrument’s INRUSH function.

*CM4372, CM4374, CM7291 only

FOUR FUNCTIONS THAT LET YOU LINK THE APP WITH A MEASURING INSTRUMENT: BATTERY

You can send data automatically to the app simply by placing the probes in contact with measurement points. This capability allows you to save linked measurements without needing to touch your smartphone at all. In addition, the app can automatically generate a PASS/FAIL judgment for the battery based on data captured from the battery tester.

*BT3554-01 only

CREATING REPORTS IN THE FIELD

You can manipulate measured value data and image data as selected from the data list to create a PDF-format report right there in the field. You can include a title, subtitle, recipient, author, and corporate logo on the report’s cover sheet.

Bluetooth® connection: Bluetooth® 4.0 LE (Bluetooth® SMART)

Supported OS: iOS 8 or later, Android TM 4.3 or later

No. of controllable devices: For data logging, up to 8 devices can be connected (up to 8 measured values can be logged) at once. Only 1 device can be used at any one time when using the CM7291 as a current waveform monitor current waveform
