Transient Technologies - VIY3 Software Package
The VIY3 software is the one of the most important GPR’s part. VIY3 software package is designed for GPR setup, sounding control, processing and storage of GPR data. VIY3 software package consists of two programs: Synchro, and Planner. Both programs work in a close liaison with each other. That allows to see a whole measuring area plan with GPR profiles on it directly during sounding process.
Most popular related searches
ground penetrating radar data
GPR data acquisition
ground penetrating radar data software
ground penetrating radar control
ground penetrating radar software
inclinometer
ground penetrating radar design
- User-friendly interface with multiple windows
- Language interface - English, Russian, Polish, Chinese, Spanish, Turkish and German
- Full support of languages with 2-bit coding

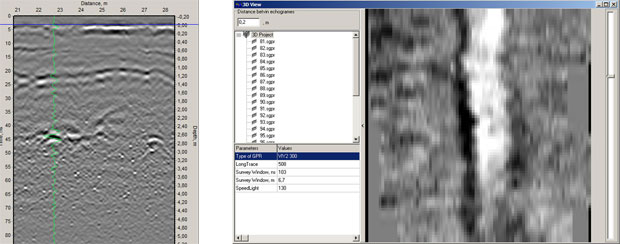

- Results of measurement can be displayed as a separate trace (A-scan), profile (B-scan) or horizontal slice(C-scan)

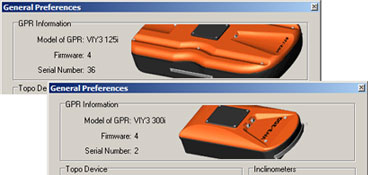

- Antenna automatic recognition
- Display status of a built-in antenna battery
- Supports antennas with built-in inclinometers

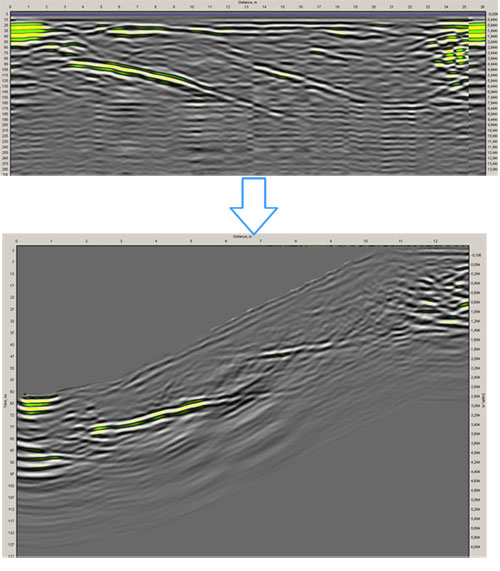

- Automatic topographic correction
- Safe way to store the GPR data
- Source data are not changing while processing
- Export to BMP, text and SEG-Y
- Adjustment of the wave speed in the ground (or other environment)- `Hyperbola` tool
- Handy scaling with interpolation
- Flexible GPR profile graphic palette adjustment
- Convenient palette library that can be edited by user

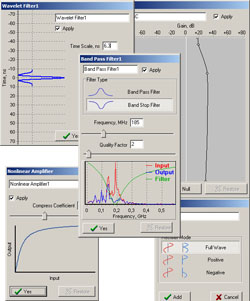

- Wide range of tools that can be used in post-processing
- Interactive displaying of the tool application results on the profile
- User-friendly interface for tools usage

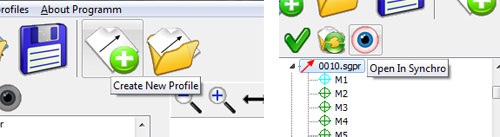

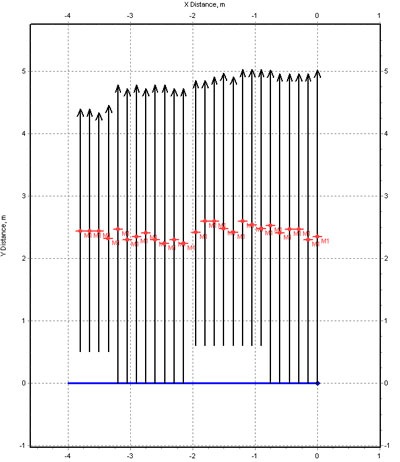

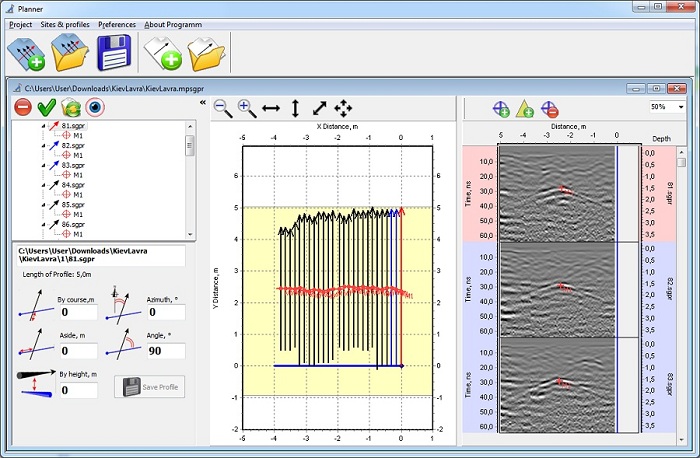

Planner program is designed to display all measured GPR data and all found items on the location plan and to manage the sounding process.

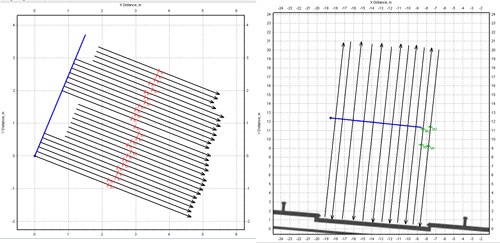

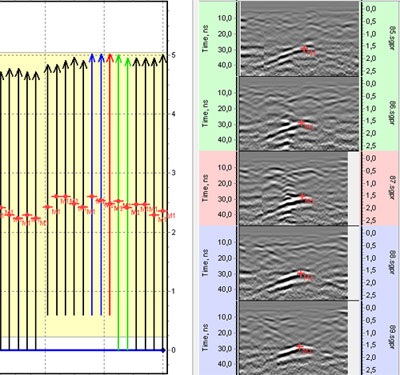

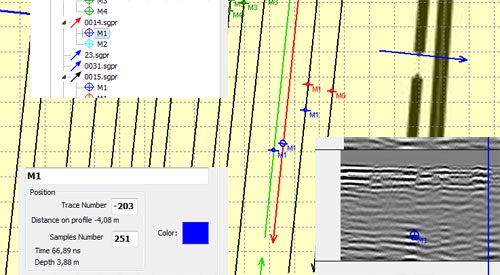

- Convenient view and identification of GPR profiles. Marking on the GPR profile and on the view area
- Arbitrary orientation and position of the base line
- Unlimited number of GPR profiles in the site. Unlimited number of sites in the project

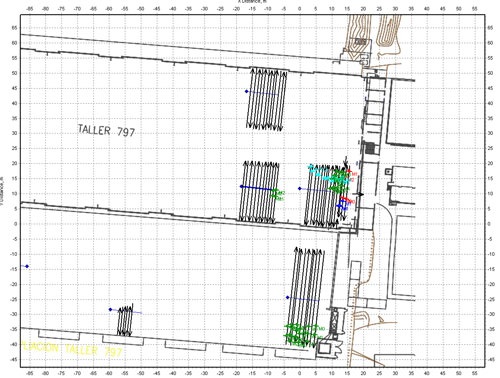

- Raster image of area plan/map can be used as a bottom layer in the project
- Convenient editing of object`s markers

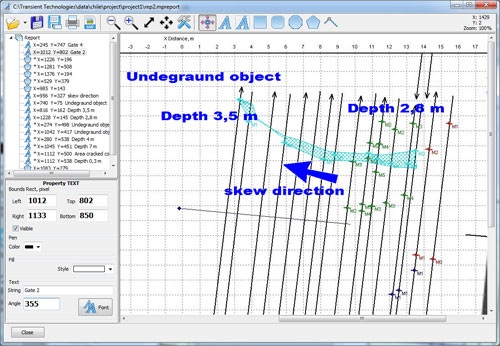

- Report preparation
- Easy integration with Synchro3 program during sounding and data processing
- Data export to AutoCad

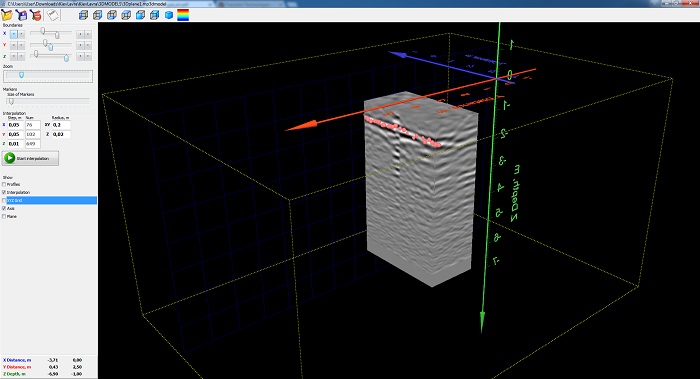

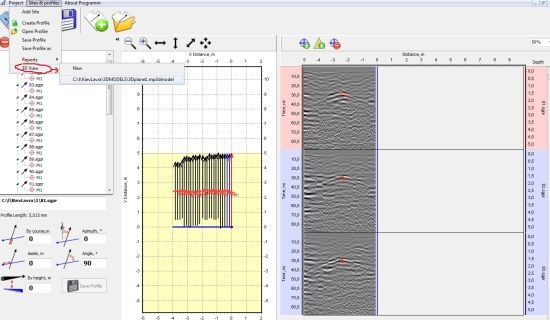

- 3D visualization can be made directly from Planner
- 3D interpolation can be built by any profile section in any project plane (Z,Y,Z)
- Auto setting of interpolation parameters with optional manual setup

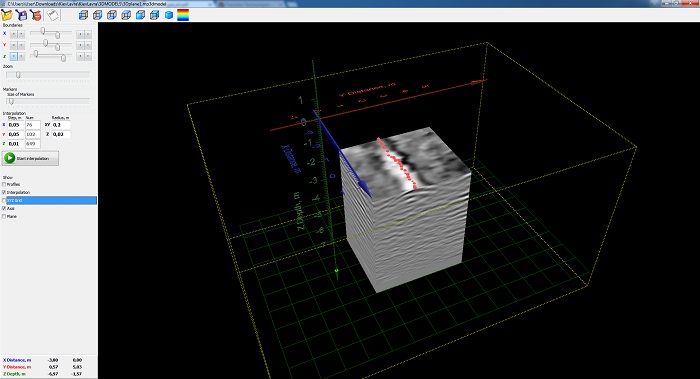

- 3D data displaying and rotating
- The interpolation can be built by any profile section and project plane
- No extra software is necessary
- Marker size adjustment
- Buttons of auto positioning: top view, left view, right view, front view, isometric view etc.
- Making reports with 3D view
- Interpolation for 3D view can be made with any data set – different GPR presets, types of antenna unit, orientation of profiles
