Xelas Energy - Version 61850 -Client Development Environment Solution

SHARE

Xelas Energy offers an advanced 61850 Client Development Environment.  The 61850 Client development environment is based on  latest technology, with a lean protocol adaptation and an open database management layer.  On top of the IEC 61850 information basic data, a webserver-based architecture is offered for flexible usage.

Most popular related searches
integrity monitoring
  • 61850 basic Client application is provided fully out-of-the box (only needs setup)
  • within J2EE webserver environment
  • JAVA, C++ and C development
  • Standard Web GUI on top
  • All structured IEC 61850 data stored through open Database Integration (ODBC interface) in any SQL database (mySQL is provided as example in evaluation package)
  • ideal basis to develop further management or business applications, since developers can interface directly with “common” SQL database  (OT – IT translation is already provided by the Xelas-client itself)
  • ACSI Library provides for rapid 61850 development. Not just a MMS API but a fully functional 61850 ACSI library
  • All 61850 protocols: MMS, GOOSE, Sampled Values
  • Multiple information models supported: 61850-7-420(DER), 61850-7-410(Hydro), 61850-7-x(substations) and 61400(Windpower)
  • Extendable with IEC 62351-4 Security plugin
  • Platforms: Windows, Linux, HPUX, Solaris
  • Scalable and capable of supporting a large number of IEDs

The 61850 Client Toolkit provides substantially more functionality than other 61850 “basic stack” vendors, due to our fully developed ACSI layer library.

  • Basic full 6185o client application out-of-the-box
  • Java, C++, C and XML APIs
  • All 61850 data stored in structured SQL database
  • Everything within J2EE webserver
  • Further management or business applications can be developed by working directly with the common IT- database
  • ACSI Library implementation drastically reduces development time
  • Data persistence via integrated database storage
  • Web GUI available for easy monitoring and integration
  • Standard XML and ODBC Protocol Adaptors
  • MMS, Goose and SV communication protocols supported
  • Powerful add-on products:
  • Server simulator and IEC 61850 Conformance test suite

For a more detailed description of why the Xelas 61850 Client Toolkit is superior to any other product please see the technical Differentiators page.

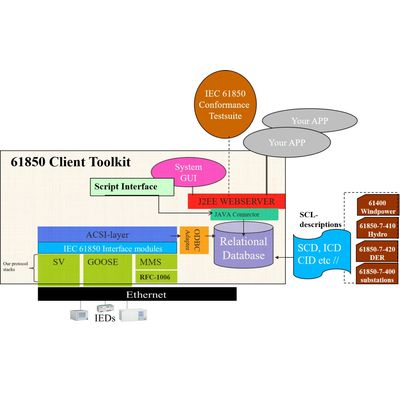

The 61850 Client Toolkit provides a full development environment to rapidly develop IEC 61850 Client applications.

Some application development features of the 61850 Client Development Toolkit:

  • JAVA J2EE Framework API
  • Built-in persistent storage of all data through ODBC adaptors
  • MMS, Goose and SV functionality, protocols provided
  • Multi-threaded Architecture
  • Standard Web GUI integration
  • Multiple APIs including XML, JAVA, C++ and C
