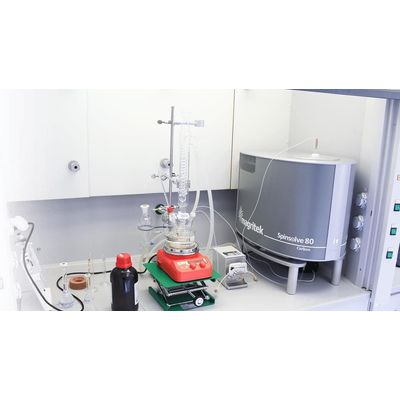

The Spinsolve high-resolution benchtop NMR spectrometer can be installed directly in the fume hood of a chemistry lab to monitor the progress of chemical reactions on-line.
NMR reaction monitoring is an excellent technique for determining reaction kinetics as well as reaction end points. NMR measurements are quantitative and NMR signals change in a linear way as concentrations vary. The NMR technique is not sensitive to the matrix of the sample. NMR measurements are non-destructive and the complete sample material being inside the NMR coil is analyzed. The Spinsolve high-resolution benchtop NMR spectrometer can be installed directly in the fume hood of a chemistry lab to monitor the progress of chemical reactions on-line. Reactants can be pumped in continuous mode from the reactor to the magnet and back using just standard PTFE tubing or using a glass flow cell. Magritek has created two solution kits for reaction monitoring: one using a glass flow tube with an expanded 4 mm ID section in the measurement zone. The other one, is a very cost-effective solution using just PTFE tubing and a glass guide tube, as well as the pump (read more…). Besides the hardware, Magritek developed a reaction monitoring software module for an easy set-up of the reaction loops and the data processing (read more…).
Imines, also named Schiff’s bases, are easy to synthesize and allow the use of a large variety of starting materials (i.e. amine and aldehyde) for the condensation reaction. Therefore, these compounds are very popular in different areas. In coordination chemistry, Schiff’s bases are used as ligands to obtain metal complexes, like the Salen ligand or the ligand of the Jacobsen´s catalyst. In the dyes and pigments area, metal complex dyes of nickel with Schiff’s bases are used. On the other hand, porphyrin Schiff’s base ligand compounds have photoluminescence and/or electrochemical activity. In pharmacy, numerous Schiff’s bases are potential bioactive cores, that can have useful biological activities. In biochemistry, Schiff’s bases are commonly used as enzymatic intermediates. Therefore, online monitoring of this reaction is important to understand the mechanism and the formation of intermediates. In this note, the application of benchtop NMR to study this kind of reaction is demonstrated taking as an example the reaction between phenylenediame and isobutyraldehyde in acetonitrile to form the diimine product.
On-line monitoring of chemical reactions is a fast-growing field finding applications in R&D labs, pilot plants, and large chemical production plants where fully automated analyzers provide feedback to control the reactor. With the availability of the Spinsolve compact benchtop NMR systems, the NMR spectrometer can be brought directly next to the reaction set-up in the lab or even in plant. Permanent magnet systems do not need cryogens or special maintenance and only minimal training is required for personnel to perform the measurements due to the ease of use. In this application note we show the performance of a Spinsolve 60 MHz ULTRA to monitor the N-Acetylation of L-Phenylalanine with acetic anhydride. L-Phenylalanine is an essential amino acid used in a variety of industrial processes, e.g. as reactant in the synthesis of the ACE-inhibitor Alacepril, as well as in the production of the well-known, non-saccharide sweetener Aspartam. In many chemical processes involving amino acids the reactive centers must be protected to ensure the required regioselectivity of the reaction. In this example the acetylation of the amine works as a protection group to move the reactive center towards the acid functionality of the L-Phenylalanine. Besides monitoring the progress of the reaction, the NMR spectra also provide information about the addition of reactants step and the consequent hydrolysis of the reactant acetic anhydride.
Fluorine containing scaffolds and building blocks play a remarkable role within drug discovery in medicinal chemistry for the synthesis of Active Pharmaceutical Ingredients (API). The fluorine atom holds some key advantages in terms of pharmacokinetic and physicochemical properties. Some of the major advantages are the improved metabolic stability and the enhanced membrane permeation that allow for a significantly higher bioavailability of fluorine-containing drugs. On-line reaction monitoring by NMR has proven to be a valuable tool in process control, as it allows for a deep insight into mechanisms and kinetics of chemical reactions at laboratory, as well as pilot-scale. In previous Application Notes, we have demonstrated the benefits of using the Spinsolve Reaction Monitoring Kit to follow the progress of different reactions by 1H-NMR spectroscopy. In this application note, we show how the course of an SNAr reaction can be monitored on-line by acquiring both 1H- and 19F-NMR spectra sequentially in a continuous mode. For these particular experiments we employed our Spinsolve 60 MHz HF ULTRA system, but all Spinsolve models come with capabilities to acquire 1Hand 19F-NMR spectra without retuning or recalibration.
The on-line monitoring of chemical reactions employing NMR spectroscopy provides a deeper insight into the kinetics of the reaction in question and its mechanism. Several nuclei like 1H, 19F or 31P can be detected exclusively or combined in a consecutive experiment loop to follow the course of the reaction and to identify and quantify the chemical moieties of choice as well as possible intermediates or side-products. Within stereoselective synthesis, besides the conversion of the starting material the decisive step for the operator is to define the major and minor stereoisomers of the desired product and to optimize the chemical process towards complete stereoselectivity. For the quantification of the stereoselective outcome of chemical reactions e.g. the determination of the enantiomeric excess of the reaction product, typically HPLC methods with chiral columns and reference compounds are considered. Nevertheless, when dealing with diastereoisomers as possible reaction products the quantification of the diastereomeric ratio can be determined directly by NMR spectroscopy without the need for reference compounds or a calibration. Within the following application note, we demonstrate for the first time how benchtop NMR spectroscopy can be employed to not only follow the course of a stereoselective reaction on-line but also to determine its stereochemical outcome. For this purpose, the well-known Horner-Wadsworth-Emmons reaction (HWE reaction) was selected using our latest member of the Spinsolve family the Spinsolve 80 MHz ULTRA system.
More about Benchtop NMR spectrometer solutions for reaction monitoring sector - Monitoring and Testing - Laboratory Equipment
Figure. Left: 1H-NMR spectra (stacked) of the starting materials recorded separately as well as the reaction mixture (last spectrum of 500 shown). Right: Last acquired 1H-NMR spectra (stacked) of reactions with and without TMEDA. 1H-NMR spectra (stacked plot at the bottom; due to visibility reasons a decimation of two was applied) of the kinetic study with an overall spectra number of 500 including the trends of the integrals over time of the regions of interest.
The development of high-performance benchtop NMR spectrometers provides a practical and information-rich way to monitor on-line/in-line the progress of chemical reactions. NMR provides not only the structural information about the different chemical species involved in the reaction but also quantitative information about the concentration of reactants and products. By following the conversion in in real time, chemists get the required insight to understand the kinetics of the reaction. Another advantage of using NMR for reaction monitoring is the ability to observe reaction intermediates. These can often be missed with endpoint reaction analysis, since intermediate, by definition, gets produced in the early stage and consumed during a later stage of the reaction. In recent years, the availability and affordability of benchtop NMR systems have offered the opportunity for schools to incorporate NMR spectroscopic techniques into organic chemistry curricula. With simple button-clicking, instructors and students can perform different NMR experiments to confirm the reaction products, or to monitor a reaction with NMR. This application note describes an example of using the Spinsolve 60 MHz Carbon ULTRA to monitor a frequently used reaction in the organic chemistry laboratory – the Claisen-Schmidt (or cross-aldol) condensation reaction to synthesize dibenzalacetone. Students can visualize the kinetic profile of different chemical components in real-time. They can also observe the reaction intermediate, which is a concept that is seldomly demonstrated in laboratory experiments since intermediate species are not easily isolated from the reaction mixture for characterization. With the hands-on experience in the lab, students will develop a deeper understanding of chemistry concepts that they learn in lectures and familiarize themselves with the modern NMR techniques being adopted in industry.
