The quality of welds is becoming increasingly important as customer expectations rise. Products and components are expected to be high quality and not to fail unexpectedly. Such failures have large financial and social consequences which can be avoided with proper inspection techniques and tools.

Inspecting welds directly can reduce costs by detecting defects in earlier stages of manufacturing, reducing the cost of customer returns, and extending the life of the components by correcting them.

Non-destructive testing (NDT) with various visual inspection devices such as video borescopes and fiberscopes are widely used to ensure the integrity of structural welds in steel, aluminum, and titanium.

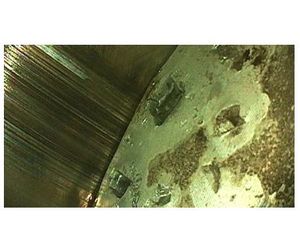

Weld inspection cameras can be used to identify cracks, incomplete penetration, inclusions, residue, incomplete sidewall fusion, leaks, and similar defects, which can compromise the strength of the welds or lead to a decreased structure lifetime.

Depending on the setting of a particular inspection, optical borescopes may be one of the best choices to check the quality of welding. A clear, undistorted image allows the detection of even the smallest imperfections. In case file capturing or visualizing the inspection onto a monitor is essential, there is an option of connecting an external video capturing device.

Video borescopes offer advanced versatility and functionality that are enhanced with longer probe lengths. They allow file capture, feature adjustable lighting, and may possess tip articulation for a better side view. With flexible or semi-rigid probes ranging from 1 meter (3.3`) and up, the welds located at a greater distance from the inspector may be checked. In addition, their smooth-coated insertion probes help to prevent polished pipes from surface scratches. Captured photo and video files are available at any time for review, renaming, or sharing. Advanced videoscopes may come with such additional features as an integrated working channel or a built-in measurement capability. The latter function is crucially essential in highly precise welding applications.

A borescope weld inspection is a non-destructive testing (NDT) method used to evaluate the quality and integrity of welds in metal structures and pipelines. It involves using specialized camera equipment, known as borescopes or weld inspection cameras, to visually inspect welds from the inside without causing any damage.

It is important to make sure that the welds (joints between two pieces of metal) are made correctly. If the welds are of poor quality, this can cause problems and lead to breakage or poor functioning. There are special tools called borescopes, with which you can look inside the welds and see if there are any problems or defects. These tools can be used in various industries and are especially useful in checking the quality of welds in important structures such as buildings, bridges, and airplanes. Cameras are mounted on the ends of the tools that can take pictures or video recordings of the inside of the welds so that the technician can see if there are any problems that need to be fixed.

Borescope weld inspection equipment can greatly improve the efficiency and accuracy of welding quality control and inspection. By using high-resolution cameras and lighting systems, you can quickly and easily identify any defects or issues with the welds, enabling you to take corrective action as needed. This can help improve the overall quality of your products and reduce the risk of costly repairs or failures.

A borescope weld inspection camera is an effective tool for quality control and inspection in a variety of industries, including:

• Construction: Borescope weld inspection is commonly used in the construction industry to evaluate the quality of welds in buildings, bridges, and other structures.
• Manufacturing: Manufacturing companies can use borescope weld inspection to ensure the quality of welds in their products, such as machinery and equipment.
• Oil and gas: Borescope weld inspection is often used in the oil and gas industry to evaluate the quality of welds in pipelines and other critical infrastructure.
• Aerospace: Aerospace companies can use borescope weld inspection to evaluate the quality of welds in aircraft, satellites, and other high-value assets.

When purchasing equipment for conducting weld inspections using a borescope, several key factors must be taken into account:

• Resolution: The equipment has to be equipped with a high-resolution camera, as this will allow you to clearly see the welds and identify any defects or malfunctions.
• Lighting: Good lighting is crucial for precise control of welds; make sure the equipment is equipped with a high-quality lighting system.
• Flexibility: Choose equipment with a flexible probe or camera, as this will allow you to access hard-to-reach areas and get a better view of the welds.
• Durability: Select the equipment that is designed for a long service life and is able to withstand the harsh conditions of regular use.

There are several benefits to using a borescope weld inspection camera for welding quality control. Some of the main benefits include:
safety contractor worker

Non-destructive
Borescope weld inspection is a non-destructive testing method, meaning it does not cause any damage to the weld or the structure being tested. This is particularly important when testing welds in critical infrastructure or high-value assets.

Efficient
Weld inspection is a fast and efficient way to evaluate the quality of welds, particularly when compared to traditional methods such as radiographic testing or ultrasonic testing. It allows you to quickly and easily identify any defects or issues with the welds, saving time and money.

Accurate
Most welding inspection cameras are equipped with high-resolution cameras and lighting systems, allowing you to clearly see the welds and identify any defects or issues. This enables you to make more accurate and reliable assessments of the weld quality.

At fiberscope.net, we offer a wide range of high-quality welding inspection cameras and borescopes, including pipe weld inspection cameras, visual inspection tools, and quality control borescopes.

Our products are designed to meet the needs of a variety of industries, including construction, manufacturing, oil and gas, and aerospace.
