Copper Analyzer EDX9000A For Non-Destructive And Rapid Determination Of Impurity Elements In Copper - Metal
Copper, denominated on account of its characteristic purplish-red hue, pertains to industrial-grade pure copper. It exhibits a melting point of 1083 °C and a relative density of 8.9, which is fivefold that of magnesium. Copper is distinguished by its outstanding electrical and thermal conductivity. In terms of electrical conductivity, it is surpassed only by silver, endowing it with extensive applicability within the electrical industry. It is prevalently utilized in the fabrication of electric wires, cables, and brushes. With regard to heat conduction, it is frequently enlisted for the production of equipment components necessitating efficient heat transfer, such as heat exchangers.
Copper is remarkable for its outstanding plasticity, which renders it amenable to both hot pressing and cold pressing procedures. Consequently, it can be manufactured into a diverse array of pipes, rods, and plates. It also possesses a relatively high degree of chemical stability and demonstrates satisfactory corrosion resistance in the atmosphere, fresh water, and non-oxidizing acids. However, it exhibits a susceptibility to corrosion in oxidizing acids (such as nitric acid), salt solutions, and certain sulfur-containing compounds. Copper is characterized by a relatively low strength level. Generally, its strength is augmented either through cold working hardening or the incorporation of alloy elements to fulfill the specific requirements of diverse engineering applications. It fulfills an indispensable function in numerous domains, including architectural decoration, mechanical manufacturing, and electronics.
Copper is remarkable for its outstanding plasticity, which renders it amenable to both hot pressing and cold pressing procedures. Consequently, it can be manufactured into a diverse array of pipes, rods, and plates. It also possesses a relatively high degree of chemical stability and demonstrates satisfactory corrosion resistance in the atmosphere, fresh water, and non-oxidizing acids. However, it exhibits a susceptibility to corrosion in oxidizing acids (such as nitric acid), salt solutions, and certain sulfur-containing compounds. Copper is characterized by a relatively low strength level. Generally, its strength is augmented either through cold working hardening or the incorporation of alloy elements to fulfill the specific requirements of diverse engineering applications. It fulfills an indispensable function in numerous domains, including architectural decoration, mechanical manufacturing, and electronics.
Alloy analysis pertains to the determination of the chemical composition within samples. By leveraging an X-ray fluorescence (XRF) spectrometer, it becomes possible not only to expeditiously ascertain the alloy grade PMI (Positive material identification) but also to precisely obtain the elemental constitution of the entire alloy material. The EDX9000A has been extensively employed across various industries that necessitate alloy composition analysis, spanning aerospace testing, raw material analysis, quality control, smelting, metal processing, welding, as well as waste recycling and rapid classification and screening.

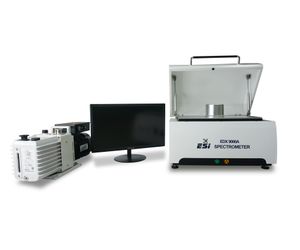

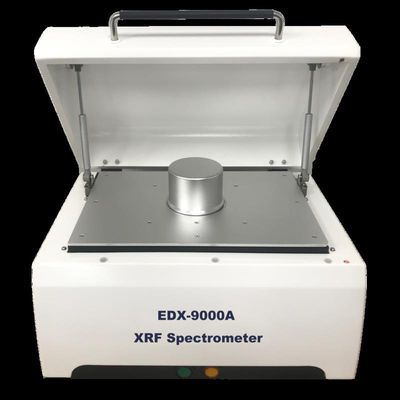

As a high-performance desktop energy-dispersive X-ray fluorescence spectrometer, the novel EDX9000A is furnished with the most advanced FP (Fundamental parameter) software predicated on the Windows basic parameter algorithm. The FP software represents one of the crucial prerequisites for alloy analysis. The FP algorithm is capable of substantially diminishing the absorption and enhancement effects among the various metal elements present in alloy samples, thereby catering to the customers' requisites for elemental analysis of a wide range of complex alloy samples.

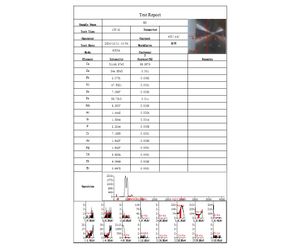

The subsequent content is the test report regarding the utilization of the EDX9000A for the non-destructive and rapid determination of the content of impurity elements in copper.
