Flow Measurement Big Pipe solution for Industry - Power Plants - Energy - Power Distribution

SHARE

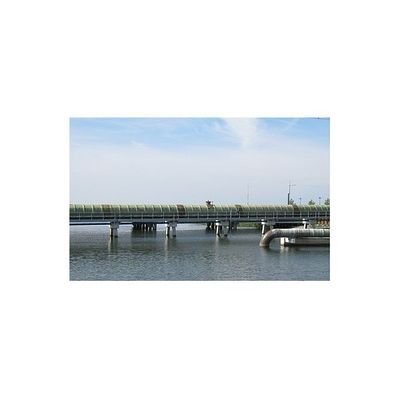

Application: Pipe DN 2400 made of wrapped GRP. Part filled. Cooling water (seawater) with max. flow rate of 60.00³/h from power plant.

Most popular related searches

flow velocity sensor

ultrasonic level monitoring

wall mounted enclosure

flow transmitter

ultrasonic level

Accurate flow detection at flow velocities up to 6 m/s
No holes must be drilled into the plastic pipe

A permanent flow transmitter Type NivuFlow 750 with wall mount enclosure has been used. As accompanying sensor the high-performamce flow velocity sensor Type CS2 utilising the ultrasonic cross-correlation method has been selected.

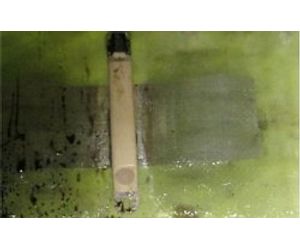

The sensor has been fastened on the pipe bottom using a mounting sheet and a special synthetic resin adhesive.
An external ultrasonic level measurement using
a NivuNaster L2 with a p10 sensor has been installed additionally as redundant level system.

Low installation expenses
Reliable and stable measurement in all measuerment ranges
