Flowing Waters - Special Constructions solutions for Flow Measurement on Sluice - Water and Wastewater

SHARE

Application: Rectangular channel 5 x 5 m. Part filled. Concrete lining. Flow in both directions possible.

Most popular related searches

flow monitoring

flow monitoring system

concrete lining

bidirectional flow measurement

construction site water

level monitoring

position sensor

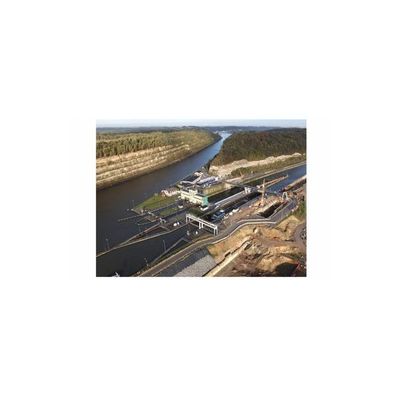

Measurement of feed and drain volumes in the system channel to sluice chambers
High accuracy required to create a water balance of the channel system
Proven and reliable low-maintenance measurement system

The bidirectional NivuFlow NF650 flow measurement system was used.

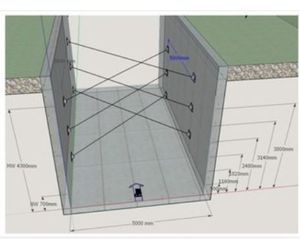

3 measuring levels with 2 crossed paths each and the positions of the hemisphere sensors used as well as the evaluation of the individual velocity paths according to DIN EN ISO 748 ensure high accuracy.

Reliable measurement with high accuracy
Accepted by authorities since recording and evaluation of readings are based on international standards
