Geometry & metrology solutions for coordinate measurement sector - Monitoring and Testing - Meteorological Monitoring
Determination of component`s geometries with an ultra-high accuracy in a single and fast scan. Industrial CT scanning has a growing number of industrial applications requiring dimensional metrology. The complexity and the variety of the products, combined with the request for cost and time-efficient solutions for production and product development, create new challenges in quality control.

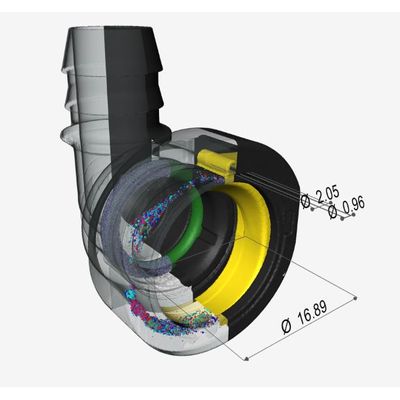

Computed Tomography is a powerful non-destructive technique enabling the measurement and the characterization of internal and external structures of an object in the 3D volume to calculate various parameters on surfaces and features. Independently of the complexity of the shape and based on high-density 3D point clouds volumes generated by X-ray CT scans, any traditional measurements can be performed, including GD&T dimensional measurement and position tolerances such as parallelism, perpendicularity, concentricity…
Non-destructive and contact-free testing permits the inspection of multiple industrial components. Assuring micrometer accuracy in most cases, industrial CT scanning becomes an essential technology to qualify and inspect complex parts or assemblies.
