NORM Waste Plants for Oil and Gas Industry - Oil, Gas & Refineries - Oil

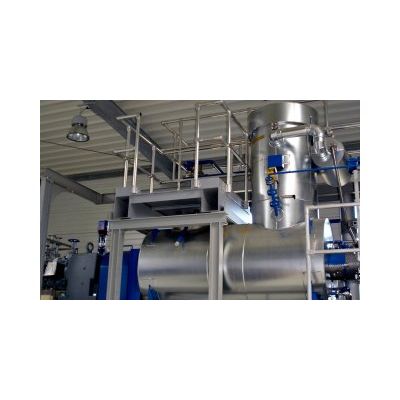

Natural Occurring Radioactive Material consists of materials enriched with radioactive elements found in the environment. They are usually brought to the surface by oil and gas exploration or mining. NORM wastes can be treated in a VacuDry® unit in order to prepare it for a safe sub earth disposal. Find more information, important key facts and the benefits of VacuDry® NORM waste plants on

  • Environmentally friendly separation of oil, mercury and water from NORM waste (required for final safe disposal)
  • Separately recovered contaminants by fractional condensation
  • High temperatures and low vacuum ensure a thorough cleaning process
  • Low energy consumption ensured through controlled power requirements
  • Emission and dust-free system; encapsulated treatment of exhaust vapours and solids

  • Sources: Contaminated sludge from natural gas drilling; oil and gas NORM waste from decontamination of pipes, tools and equipment; NORM containing oil lagoons
  • Input material: NORM sludge, NORM drill cuttings, other NORM waste
  • Output material: Water, oil, mercury, dried solid residue > 99 % pure minerals (containing 100 % of the NORM)
  • Plant design: Fixed or mobile execution 0.5 … > 5 t/h throughput capacity
  • Heating system fired by: Fuel oil, diesel, natural gas, electricity, biofuels
  • Optional: Remoistening, cooling and stabilisation of cleaned solid output
