Sample handling solutions for chlorine analyzer sector - Monitoring and Testing - Environmental Monitoring

FromCustom Sensors & Technology (CST)

SHARE

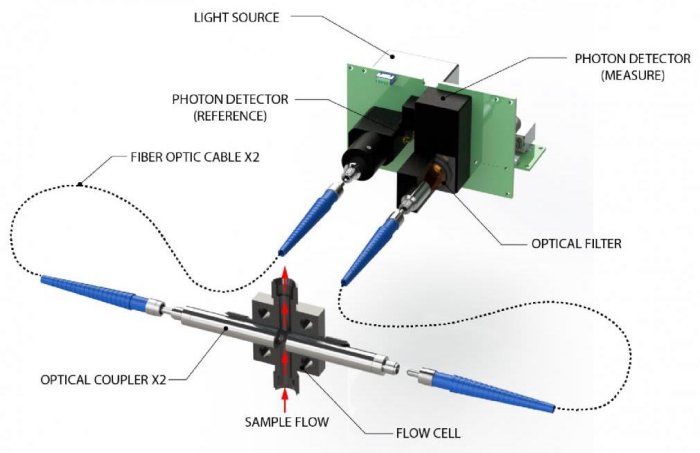

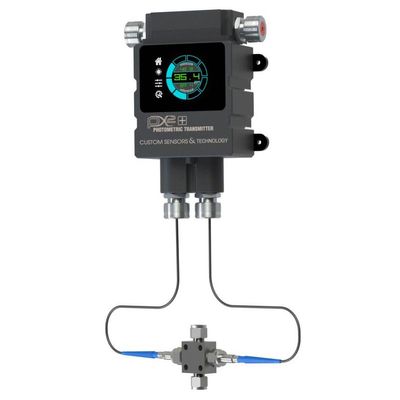

The Chlorine Analyzer is designed for continuous, real-time monitoring of hypochlorite. The all-inclusive Chlorine Analyzer comes preassembled in a waterproof NEMA4X enclosure with a dedicated sample flow cell outside the enclosure. The analyzer includes a PX2+ photometer with two fiber optic cables and a flow cell with two optical interface couplers.

Most popular related searches

chlorine analyzer

industrial wastewater

sample handling system

industrial waste

environmental monitoring

Measurement Principle: UV Absorbance
Range: OCL¯ (PPM to % levels)
Accuracy: ± 1% of Full Scale
Repeatability: ± 0.5% of Full Scale
Light Source: Xenon Flash Lamp
Detector: Silicon Photodiode
Display: 3.2″ Capacitive Touch Screen Display
Alarms: Contact Closure (60 VDC, 0.75 A max.)
Analog Output: 4-20 mA, isolated
Analog Loop Resistance: 500 ohms @ 24 VDC
Digital Output: USB-B, RS-485 (Modbus)
Power Consumption: 8.5 watts (max.)
Power Requirements: 24 VDC nominal (12-48 VDC)
Enclosure Material: NEMA4X Anodized Aluminum
PX2+ Size: 5” H x 5.8” W x 2.8” D
Temperature: 5-50C
Weight: 3.5 lbs. (1.6kg)
Sample Introduction: Titanium or PVC Flow Cell
Process Pressure: 2000 psi max
Minimum Flow Rate: 100 ml/min

Bleach Production
Cooling Water
Industrial Waste Water
Potable Water
Chloramination Control
