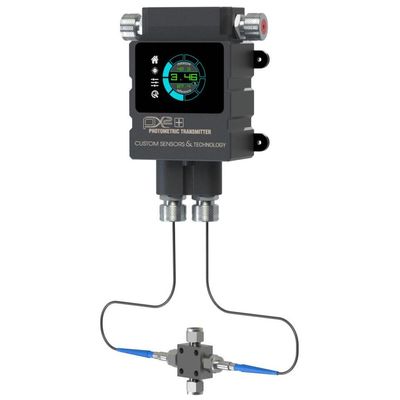

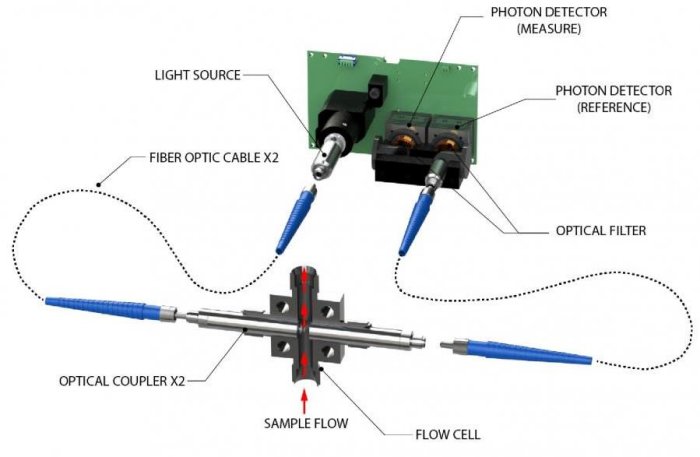

The Water in Ethanol Analyzer continuously measures water concentration in alcohol and displays the concentration on the unit’s touch screen display in real-time. The all-inclusive Water in Ethanol Analyzer comes preassembled in a waterproof NEMA4X enclosure with a dedicated sample flow cell outside of the enclosure. The analyzer includes a PX2+ NIR photometer with two fiber optic cables and a cross flow cell with two optical interface couplers.

Most popular related searches

continuous water monitoring

tungsten halogen lamp

water monitoring

sample handling system

sample handling

real-time water

tungsten light source

Measurement Principle: NIR Absorbance
Range / Pathlength: 0-1% = 10.64 mm / 0-10% = 2 mm
Accuracy: ±1% of full scale or better
Repeatability: ±0.5% of full scale or better
Light Source: Tungsten Halogen Lamp
Detector: Two Stage TE-cooled InGaAs Photodiode
Display: 3.2″ Capacitive Touch Screen Display
Alarms: Contact Closure (60 VDC, 0.75 A max.)
Analog Output: 4-20 mA, isolated
Analog Loop Resistance: 500 ohms @ 24 VDC
Digital Output: USB-B, RS-485 (Modbus)
Power Consumption: 8.5 watts (max.)
Power Requirements: 24 VDC nominal (12-48 VDC)
Enclosure Material: NEMA4X Anodized Aluminum
PX2+ Size: 5” H x 5.8” W x 2.8” D
Operating Temperature: -20-32C
Weight: 3.5 lbs. (1.6kg)
Sample Introduction: 3/8″ 316 Stainless Steel Cross Flow Cell
