Sludge Flow Measurement in Recirculation Line solutions for Wastewater Treatment Plant - Sludge Treatment - Water and Wastewater - Sludge Management

SHARE

Application: Pipe with 0.4 m diameter, made of stainless steel. Full filled. High pollution load, up to 1 % dry solids.

Most popular related searches

flow monitoring system

flow monitoring

wastewater treatment plant

sludge flow monitoring

wastewater sludge management

wastewater sludge

wastewater sludge treatment

sludge conveyor

Failsafe and stable measurement of the return sludge conveyed using screw pump lifting equipment in the horizontal line downstream of the transfer chamber
Both existing measurements (EMF + clamp-on) did not work reliably or did not work at all due to high pollution and gas loads
Low installation expenses

The flow measurement system Type NFP has been used.

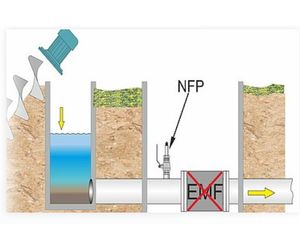

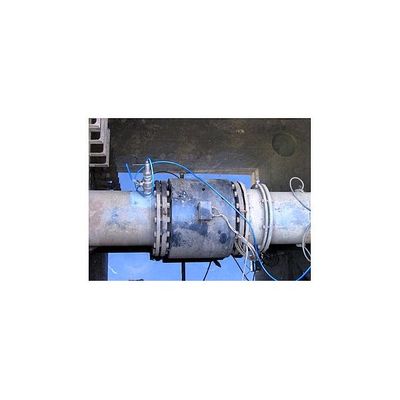

Upstream of the non-functioning EMF a hole has been drilled and a nozzle has been welded onto the existing pipeline. Subsequently a ball valve for sensor removal under process conditions has been installed and the sensor has been adjusted and fixed.

Easy, simple and quick upgrading of existing facilities
Old measuring devices did not necessarily need to be removed
Reliable measurement despite high dry solid contents
