Wastewater Treatment Plant - Discharge ...

Wastewater Treatment Plant - Discharge Area solutions for Partial Discharge Section Flow Measurement - Water and Wastewater - Water Treatment

SHARE

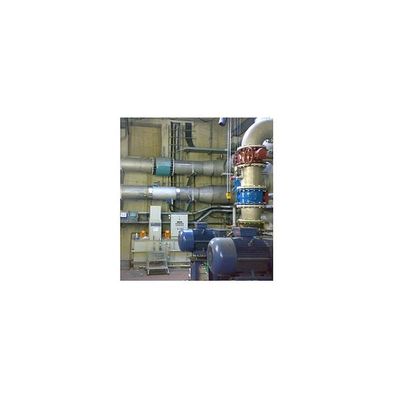

Application: Pipe DN 500, made of stainless steel. Full filled. Service water tapping and feeding point.

Most popular related searches

wastewater treatment plant

wastewater treatment

water treatment

flow monitoring

discharge flow monitoring

partial discharge monitoring

pipeline integrity

wastewater plant

wastewater treatment system

For secondary clarification control a partial discharge of the WWTP needs to be measured
Recorded values shall be forwarded to control system

A transit time measurement system Type NivuSonic using 2 measurement paths has been used.
The sensors have been installed in a measuring pipe with integrated ball valves. This allows to replace sensors under process conditions at any time.
Crosswise path arrangement virtually eliminates crossflow during calculation.

Easy and robust installation using calibrated pipe segment
No bypass required
High accuracy and reproducibility
