Wastewater Treatment Plant - Stormwater Treatment Facilities solutions for Flow Measurement at Overflow Sil - Water and Wastewater - Stormwater

Definition of Task

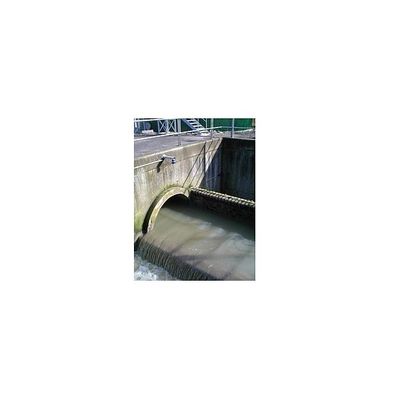

• The stormwater overflow at the inlet are of a wastewater treatment is to be measured
• according to mandatory surveillance.
• According to ATV-DVWK volume, time and duration of overflow have to be measured

Solution

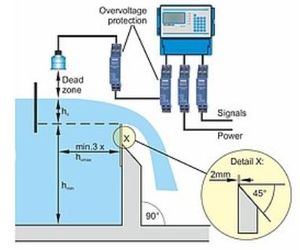

• The non-contact ultrasonic measurement system Type NivuMaster has been used.
• All established discharge characteristics, which may be selected depending on the shape of the sill, are stored in the transmitter.

Advantages:

• Day totals and overall totals are recorded using integrated counters. For this reason no additional PLC is required.
• Clear text menus lead the user through the system configuration process. The complete application parameters may be set up by a few settings.
