Celdar Technology - Fluorides Removal in Lithium Battery Recovery Industry - Case Study

• Location: NORTH EUROPE
• PRODUCED WASTEWATER: 40 cubic meter/hour
• Typical problems in wastewater: High Fluorides, Sulphates, COD

TREATMENT PRINCIPLES AND AIMS

Another option required was the ZERO LIQUID DISCHARGE and therefore the possibility of reusing the treated water with the least amount of consumption possible.

This option is possible using an ELECTROCOAGULATION PLANT since no chemicals are used and therefore the physical and chemical characteristics of the water to be treated have little variation compared to the treated water.

The obtained results and working conditions are below

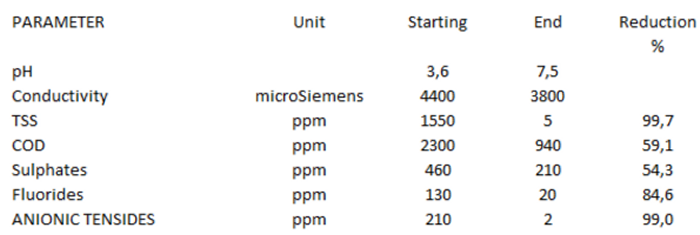

• TYPICAL ANALYSIS PARAMETERS

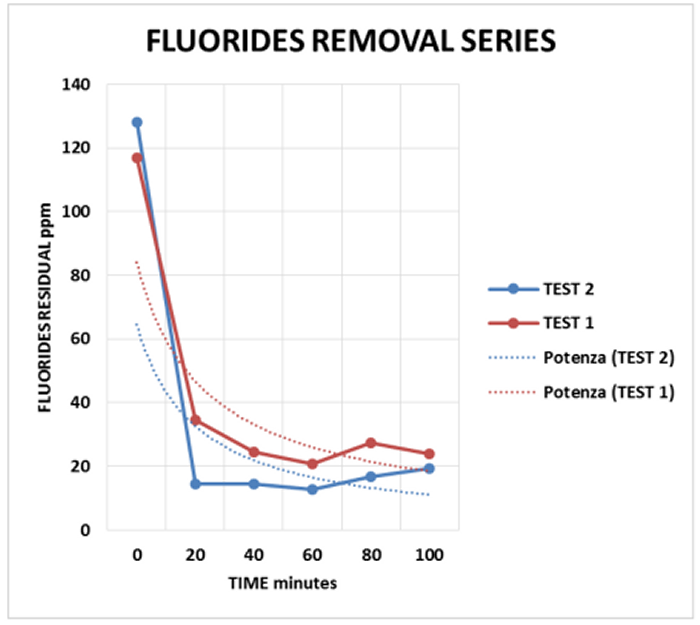

• Achieved results (first image)
• https://www.replicait.it

ELECTROCOAGULATION PROCESS PARAMETERS

• Number of electrodes: 36
• Type of alloy: CELDAR
• Volt applied: 7
• AMPERES: 48
• Reaction time: 2 hours
• Temperature: 48 °C
• Final treatment:  Flocculation
