Copper Cable Recycling: How Instant Alloy Identification Turns Scrap into Maximum Profit

Not all "copper" cable is created equal. The cable industry uses dozens of copper alloys, each designed for specific electrical, mechanical, or corrosion properties. When these cables reach end-of-life, they all look like generic scrap—but their value varies wildly.

Common Cable Alloys and Their Scrap Values (approximate market prices, Feb 2026):

Pure Copper (C11000, 99.9% Cu):

• Most common in household wiring, building wire, grounding conductors
• Scrap value: ~$3.80/lb for clean bright copper
• Easy to identify when clean and unoxidized
• Problem: Oxidized copper looks identical to brass

Brass (C26000, 70% Cu, 30% Zn):

• Used in cable terminals, connectors, switch contacts
• Scrap value: ~$2.00/lb
• Looks golden when fresh, brown when oxidized
• Problem: Old oxidized brass looks exactly like oxidized copper

Phosphor Bronze (C51000, 95% Cu, 5% Sn + P):

• Used in electrical springs, switch contacts, high-current connectors
• Scrap value: ~$3.50/lb
• Slightly pinkish color when clean
• Problem: After years of service, indistinguishable from copper visually

Copper-Nickel Alloys (C70600, 90% Cu, 10% Ni):

• Marine cables, shipboard wiring, corrosion-resistant applications
• Scrap value: ~$5.50/lb (nickel content drives premium)
• Silver-white appearance when polished
• Problem: Under dirt and oxidation, looks like any other cable

Beryllium Copper (C17200, 98% Cu, 1.9% Be):

• Specialized high-performance connectors, telecommunications
• Scrap value: ~$4.20/lb
• Virtually identical to pure copper in appearance
• Problem: Extremely rare, often mixed into copper scrap unrecognized

The Profit Gap: A yard processing 1,000 lbs of mixed cable per day faces this scenario:

Without alloy identification:

• Sort visually as "copper scrap"
• Sell to refiner at average mixed copper price: ~$3.00/lb
• Daily revenue: $3,000

With XRF identification:

• Separate pure copper (70%): 700 lbs x $3.80/lb = $2,660
• Identify copper-nickel (5%): 50 lbs x $5.50/lb = $275
• Separate brass (15%): 150 lbs x $2.00/lb = $300
• Bronze and other (10%): 100 lbs x $3.50/lb = $350
• Daily revenue: $3,585

Difference: $585/day = $2,925/week = $152,100/year additional profit on the same material volume. And that`s conservative—real yards often find higher percentages of premium alloys once they start looking.

The Contamination Penalty: It works in reverse too. A copper lot contaminated with 15% brass gets downgraded by the refiner. Instead of $3.80/lb for clean copper, you get $3.00/lb for mixed scrap—a 21% price cut. On 1,000 lbs, that`s $800 lost. XRF testing prevents this by ensuring clean, properly sorted lots.

X-ray fluorescence (XRF) technology sounds complex, but the operation is dead simple: point, trigger, read.

The Physics (brief version): When X-rays hit metal atoms, those atoms emit fluorescent X-rays at energies unique to each element. Copper emits at 8.04 keV, zinc at 8.63 keV, nickel at 7.47 keV. The analyzer measures these energy signatures and calculates what percentage of each element is present. Three seconds later, you know exactly what you`re holding.

What the Analyzer Shows:

• Alloy grade identification: "C11000 Copper" or "C26000 Brass"
• Elemental composition: Cu 99.2%, trace O, Fe
• Match to standards: 316 Stainless (if someone sneaked steel into your copper pile)
• Pass/fail vs specifications: If you`re buying cable scrap and want to verify supplier claims

Testing Process (for cable recycling):

1. Surface prep (30 seconds): Cut or grind through insulation to expose clean metal. Dirt, oil, and plastic block X-rays, giving false readings. Wire brush or grinder creates a clean test spot.
2. Position analyzer (5 seconds): Place analyzer window directly against metal surface. Steady contact, no gaps.
3. Trigger test (3-5 seconds): Pull trigger, hold steady. Analyzer bombards sample with X-rays, measures fluorescence, calculates composition.
4. Read result (instant): Screen displays alloy grade and composition. "C11000: Cu 99.9%, O 0.1%" = pure copper. "C26000: Cu 70.2%, Zn 29.8%" = brass.
5. Sort accordingly (5 seconds): Toss into correct bin based on result.

Total time per cable: ~15-20 seconds including surface prep. A trained operator can test 150-200 cables per hour. For a yard processing thousands of pounds daily, this is negligible time investment for significant profit gain.

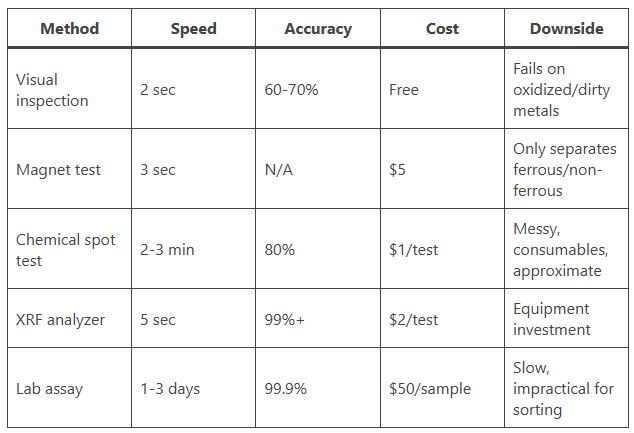

Advantages Over Other Methods:

For cable recyclers processing volume, XRF hits the sweet spot: lab accuracy at inspection speed.

What XRF Can`t Do: It analyzes surface composition only (top 10-100 microns). If a cable has heavy copper plating over steel core (rare but exists), XRF reads the copper plating. Solution: Test a cross-section cut or multiple spots. It also requires clean metal surface - testing through plastic insulation gives garbage data.

Experienced cable recyclers know certain cable types consistently contain premium alloys. Once you start XRF testing, you`ll find patterns.

Marine and Shipboard Cables: Anything from boats, ships, offshore platforms, or Navy surplus almost always contains copper-nickel alloys (C70600, C71500). The marine environment demands corrosion resistance, so straight copper doesn`t cut it. These cables might look weathered and junky, but that 10-30% nickel content makes them worth 2-3x regular copper scrap. XRF instantly flags them.

Telecommunications Infrastructure: Old telecom cables from the 1960s-1990s often used specialized copper alloys. Some contained phosphor bronze for spring temper in connectors. Others used beryllium copper (C17200) in high-reliability applications—rare but extremely valuable. A single pallet of old telco cable can contain $2,000-5,000 in misidentified premium alloys.

Industrial Motor Windings: Large electric motors use pure copper windings, but the terminal connections often employ brass or bronze for machinability. Recyclers who tear down motors and test terminals separately capture value others miss. The terminals might be only 5% of the weight but 15% of the value.

Military Surplus: Anything from military equipment—vehicles, aircraft, radar, communications—often uses exotic copper alloys for reliability. Copper-nickel, phosphor bronze, even copper-beryllium show up. Defense contractors don`t use commodity materials. If you get military surplus cables, test everything. The premium alloy percentage can hit 30-40%.

HVAC and Refrigeration: Commercial refrigeration systems use copper tubing and brass fittings extensively. The tubing is pure copper (high value), but valves, fittings, and flare connections are brass or bronze. Separating these components before shredding increases revenue 10-15%.

Automotive Wiring Harnesses: Modern vehicles contain 1-2 miles of copper wiring. Most is pure copper, but connectors, terminals, and sensor wiring use brass and beryllium copper. The difference? An automotive wiring harness sold as mixed scrap brings $1.50/lb. Properly sorted: copper at $3.80/lb, brass at $2.00/lb, plastic separately—total recovery jumps to $2.20/lb average. On 10,000 lbs/month, that`s $7,000 extra.

The Hidden Jackpot: Every cable recycler has a story about finding something extraordinary. A load of "copper wire" that tested as 60% silver solder. A pallet of "brass fittings" that was actually bronze with 10% tin. Industrial cables that contained palladium-copper alloys. These finds don`t happen daily, but they happen. XRF ensures you catch them instead of selling them at copper prices.

Implementing alloy identification doesn`t require overhauling your entire yard. It`s an incremental improvement that pays for itself quickly.

Equipment Needed:

1. Handheld XRF Analyzer ($20,000-$50,000):

• Models like ProSpector 3 handle copper alloys, brass, bronze, stainless (when steel contaminates copper loads)
• Battery-powered for 8-10 hour shifts
• Built-in alloy libraries (1,000+ grades)
• Bluetooth data logging to track what you`re finding

2. Sample Preparation Tools ($500):

• Angle grinder with wire wheel (remove insulation, clean oxidation)
• Wire strippers for smaller cables
• Safety glasses, gloves
• Clean rags and solvent (remove oil/grease)

3. Sorting Bins ($1,000-$2,000):

• Clearly labeled containers: "Pure Copper," "Brass," "Bronze," "Cu-Ni," "Mixed," "Steel/Other"
• Ideally separate bins by alloy, not just metal type
• Forklift-accessible for easy loading

4. Documentation System (varies):

• Simple: Clipboard with tally sheet
• Better: Tablet linked to XRF analyzer via Bluetooth
• Best: Integration with yard management software for full traceability

Workflow:

Receiving:

• Incoming cable arrives from demolition contractor, electrician, plant shutdown
• Visual pre-sort: obviously copper vs obviously brass vs unknown
• Test unknown and high-value looking material with XRF
• Price based on actual composition, not visual guess

Processing:

• Strip insulation (if not already done)
• Cut cables into manageable lengths
• Test representative samples from each batch
• Sort into alloy-specific bins

Quality Control:

• Spot-check sorted material periodically
• Ensure purity (test brass bin to confirm no copper contamination)
• Refiner penalties for mixed lots cost more than testing time

Shipping:

• Sell pure alloy lots at premium prices
• Document composition for buyers (XRF test reports add credibility)
• Build reputation for clean, properly graded material

Staffing: One person with an XRF analyzer can test 150-200 cable samples per hour. For a yard processing 5-10 tons of cable daily, 2-4 hours of XRF testing is sufficient. This can be existing staff trained on the analyzer—no need to hire specialists.

Training (1-2 days):

• How XRF works (basic understanding)
• Surface preparation (why clean metal matters)
• Interpreting results (reading alloy grades and composition)
• Common cable alloys (what to expect, what`s valuable)
• Safety (X-ray radiation safety is minimal but procedural)

Most scrap yard operators learn XRF testing in half a day. The technology is designed for industrial use, not laboratory PhDs.

Let`s run real numbers for a mid-sized cable recycling operation.

Scenario:

• Processing 20,000 lbs of mixed cable per month
• Current revenue: selling as mixed copper scrap @ $3.00/lb = $60,000/month
• Investment: $40,000 XRF analyzer + $2,000 sorting setup = $42,000

After implementing XRF sorting:

Composition breakdown (based on actual yard data after testing):

• Pure copper (C11000): 65% = 13,000 lbs x $3.80/lb = $49,400
• Brass (C26000): 20% = 4,000 lbs x $2.00/lb = $8,000
• Copper-nickel alloys: 8% = 1,600 lbs x $5.50/lb = $8,800
• Bronze and other: 7% = 1,400 lbs x $3.50/lb = $4,900

Total revenue: $71,100/month (vs $60,000 before)

Improvement: $11,100/month = $133,200/year

Costs:

• Operator time (50 hours/month @ $25/hr): $1,250
• Consumables (protective windows, grinding discs): $200/month
• Net monthly gain: $9,650

Payback period: $42,000 investment ÷ $9,650/month = 4.4 months

After 4.4 months, the operation is clearing an extra $116,000+ per year. That`s 22% revenue increase on the same material volume, just by sorting more accurately.

Sensitivity Analysis:

If you process less (5,000 lbs/month):

• Monthly gain: ~$2,400
• Payback: ~17 months

If you process more (50,000 lbs/month):

• Monthly gain: ~$24,000
• Payback: ~2 months

If premium alloy percentage is higher (marine cables, telecom, military surplus):

• Some yards report finding 15-20% copper-nickel instead of 8%
• Monthly gain jumps to $15,000-$20,000
• Payback drops to 2-3 months

The Hidden Benefit: Yards with XRF testing can offer premium prices for high-quality cable scrap because they know exactly what they`re buying. This attracts better suppliers (demolition contractors, plant shutdowns, electrical contractors) who bring cleaner, higher-value material. Your feedstock quality improves, compounding the profit advantage.

Mistake #1: Testing Through Insulation

Plastic, rubber, and fabric insulation block X-rays. Testing through insulation gives completely wrong readings—usually shows low copper content or fails to detect composition.
Solution: Strip a small section (1-2 inches), wire brush the metal clean, test bare metal. Takes 30 extra seconds but ensures accurate results.

Mistake #2: Assuming Visual Appearance Equals Composition

"It looks like copper, so it must be copper" is how yards lose money. Oxidation, dirt, and age make different alloys look identical.
Solution: Test first, sort second. Don`t trust visual inspection for anything beyond rough pre-sorting.

Mistake #3: Single-Spot Testing on Composite Cables

Some cables have copper cores with brass terminals, or vice versa. Testing only one spot misidentifies the cable.
Solution: Test multiple locations—core, terminals, jacket if metallic. Sort based on the dominant composition.

Mistake #4: Ignoring Contamination

A bin labeled "pure copper" that contains 10% brass contaminates the lot. Refiners penalize mixed loads, sometimes rejecting them entirely.
Solution: Spot-check sorted bins periodically. Test 5-10 random samples from each bin before shipping. Maintain purity standards.

Mistake #5: Neglecting Calibration Checks

XRF analyzers are stable, but protective windows get dirty, detectors drift slightly over time. Testing without verification can lead to errors.
Solution: Test a known standard (pure copper reference piece) weekly. If results drift from expected values, clean the window or schedule service. Elvatech ProSpector analyzers maintain calibration indefinitely, but functional checks are still good practice.

Mistake #6: Underpricing High-Value Material

You identify copper-nickel cable worth $5.50/lb but sell it to a buyer at $4.00/lb because you don`t have a direct refiner relationship for that alloy.
Solution: Build relationships with specialized buyers. Copper-nickel has specific markets (aerospace, marine, nuclear). Find buyers who pay full market value for less-common alloys.

Choosing the Right XRF Analyzer for Cable Recycling

Not all XRF analyzers are equal for scrap yard applications. Key features matter.

1. Rugged Construction: Cable recycling is dirty, rough work. The analyzer needs to survive:

• Drops (analyzers get knocked off tables, fall from loader buckets)
• Dust and dirt (scrap yards aren`t clean rooms)
• Temperature extremes (summer heat, winter cold in outdoor sorting areas)

Look for: IP54+ rating, rubberized case, drop-tested to 1-2 meters.

2. Fast Analysis: You`re testing hundreds of samples daily. Speed matters.

• Grade ID mode: 2-5 seconds (quick yes/no on alloy type)
• Quantitative mode: 10-30 seconds (precise composition if needed)

Elvatech ProSpector 3 analyzes 4x faster than competitors—important when you`re processing volume.

3. Copper Alloy Library: Pre-loaded alloy grades for instant identification:

• Common copper: C11000, C12200, C14500
• Brasses: C26000, C28000, C36000
• Bronzes: C51000, C52100, C54400
• Copper-nickel: C70600, C71500, C72200
• Beryllium copper: C17200, C17500

Also covers stainless steels, aluminum alloys (for mixed scrap sorting).

4. Data Management: Track what you`re finding:

• Built-in storage (thousands of test results)
• Bluetooth/WiFi transfer to computer or tablet
• Generate reports for customers/refiners
• Traceability (link tests to incoming loads, sort bins)

5. Battery Life: Full shift operation without recharging: 8-10 hours minimum. Spare battery for continuous operation.

6. Ease of Use: Scrap yard operators, not scientists:

• Simple trigger-and-read operation
• Clear screen display even in bright sunlight
• Minimal training required (1-2 hours)

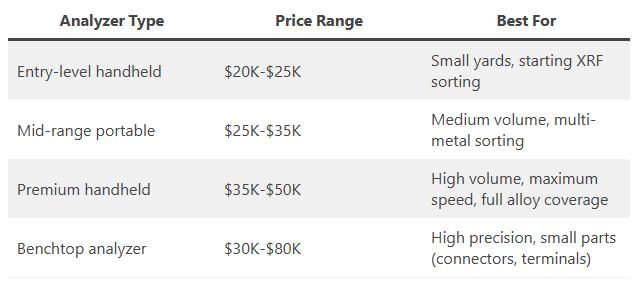

Budget Considerations:

For cable recycling, a quality handheld in the $35K-$50K range hits the sweet spot: fast, accurate, durable, comprehensive alloy coverage.

Don`t Skimp: Cheap XRF analyzers ($10K-$15K) often have:

• Slow analysis times (30-60 seconds, impractical for volume sorting)
• Limited alloy libraries (may not recognize copper-nickel, bronze variants)
• Poor accuracy on light elements (can`t distinguish aluminum alloys)
• Weak construction (won`t survive scrap yard environment)

The $10K saved on a cheap analyzer costs $50K+ annually in missed alloy identification and slower operation.

FAQ: XRF Analysis for Cable Recycling

How accurate is XRF for copper alloys?
Modern XRF analyzers achieve ±0.1-0.2% accuracy on major elements (copper, zinc, nickel, tin). For scrap sorting, this is more than sufficient—you can confidently distinguish brass (70% Cu) from copper (99% Cu) from copper-nickel (90% Cu).

Can XRF test through cable insulation?
No. Plastic, rubber, and fabric block X-rays, preventing accurate analysis. You must expose bare metal (strip or cut insulation, grind to clean surface) before testing. Takes 15-30 seconds extra per sample.

What if the cable has copper plating over steel?
XRF analyzes the surface (top 10-100 microns). Heavy copper plating reads as copper. If you suspect plating, test a cross-section cut or file through the plating to expose the core. Copper-plated aluminum and copper-clad steel cables exist—testing multiple spots catches these.

How long do XRF analyzers last in scrap yard conditions?
Quality analyzers (like Elvatech ProSpector series) are designed for industrial environments. With proper care (protective case, periodic cleaning, avoid extreme abuse), expect 10+ years of service. The X-ray tube is the main wear component, typically rated for 50,000+ hours.

Do I need special training or certification to use XRF?
No certification required in the US for handheld XRF in scrap yards. Basic safety training (30 minutes) covers radiation safety protocols. Operational training (1-2 hours) teaches testing technique and result interpretation. It`s simpler than operating a forklift.

What`s the testing cost per cable sample?
Equipment amortization + operator time + consumables = approximately $1.50-$2.50 per test. Given that misidentifying a single 100-lb load of copper-nickel (selling it as copper) loses $250, the ROI on testing is obvious.

Can XRF detect fake or adulterated materials?
Yes. Common scrap fraud—copper-plated aluminum, brass-plated steel, zinc die-cast sold as brass—shows up immediately on XRF. If a supplier claims "pure copper" but XRF shows 40% aluminum, you know it`s plated. This protects against scrap fraud.

Cable recycling profitability comes down to one factor: accurate alloy identification. Visual inspection guesses. Weight-based sorting approximates. Chemical tests are slow and messy. XRF technology provides definitive answers in seconds.

The Numbers Don`t Lie:

• Mid-sized yard processing 20,000 lbs cable/month: +$133,000 annual profit with XRF sorting
• Equipment investment: $20,000-$50,000
• Payback period: 4-8 months
• After payback: permanent 15-25% margin improvement on cable processing

Beyond the ROI, XRF sorting transforms your operation:

• Buyers trust your material composition (clean, well-graded lots command premiums)
• Suppliers bring you better cable scrap (because you pay accurate prices)
• You catch high-value alloys (copper-nickel, bronze, beryllium copper) competitors miss
• No more refiner penalties for contaminated lots

Every week you operate without XRF identification is a week of lost profit. Copper-nickel cables selling at copper prices. Brass contaminating copper lots. Premium bronze alloys disappearing into mixed scrap. The cable scrap business is competitive—yards that sort accurately outperform those that don`t.

Ready to maximize your cable recycling profits? Contact Elvatech to discuss portable XRF solutions designed for high-throughput scrap sorting. Our ProSpector 3 analyzers deliver 4x faster analysis with laboratory accuracy—ideal for cable recyclers who can`t afford to guess composition. Schedule a demo to see how XRF can transform your cable sorting operation from break-even to profit center.
