Field-Applied Wear Resistant Composite Systems Mitigate Internal Erosion and Reinforce Pipe Integrity - Case Study
Dec. 20, 2025
Courtesy ofInduMar Products, Inc.

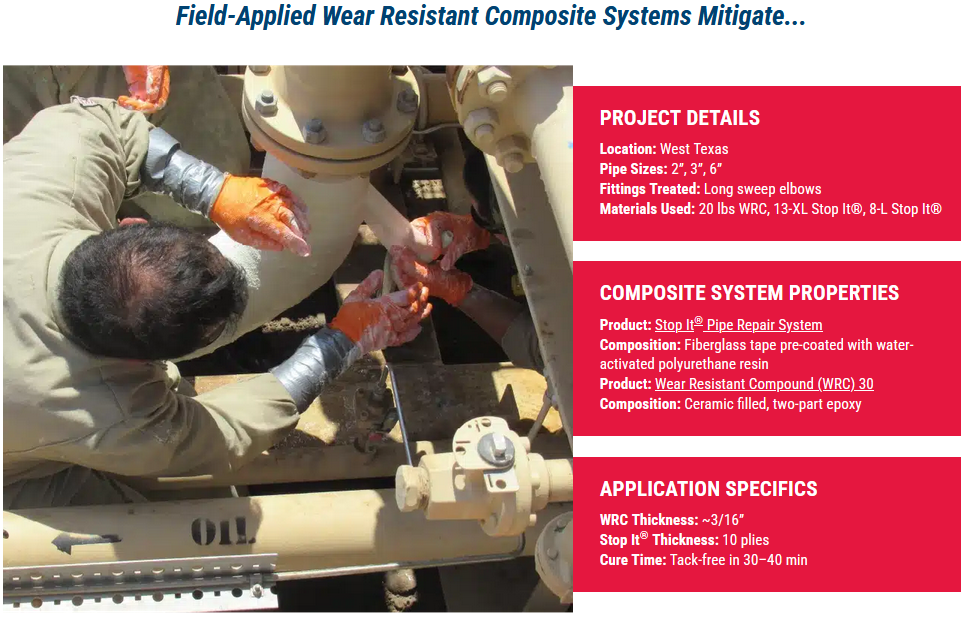

A produced water system operated in West Texas was experiencing accelerated internal degradation across multiple fittings-primarily elbows-due to high-solids loading and turbulent flow. Wall losses as high as 62% were confirmed via radiographic imaging. To prevent through-wall failure while deferring costly replacement InduMar`s WRC composite paste provided wear resistance while an overwrap with the Stop It fiberglass composite enhanced structural integrity.
Most popular related searches
wear resistance
produced water flow
produced water system
produced water
structural integrity
pipeline integrity
casing integrity monitoring
resistivity system
integrity monitoring
water erosion
INTERNAL EROSION CHALLENGES
Produced water systems handling solids and debris create high-velocity impingement zones, particularly at pipe elbows and fittings. In this project:
- Nominal wall thicknesses of 0.253" were reduced to O.OQS`` (~62% loss).
- nternal erosion at 90°. 45°. and tee fittings created deep pits and thin-wall zones.
- Sections remained in active service, requiring field-applied, quick-cure solutions.
- Heat and environmental factors (>100°F) limited working times.
PROJECT NEEDS
- Rebuild wall thickness lost due to erosive produced water flow.
- Protect elbows and fittings where turbulence accelerates material degradation.
- Enable repairs under low pressure (10 psi) without requiring asset shutdown.
- Extend the service life of fittings experiencing through-wall risk.
- Ensure structural reinforcement in localized high-wear regions.
