Oizom Environmental Data Solution Architecture

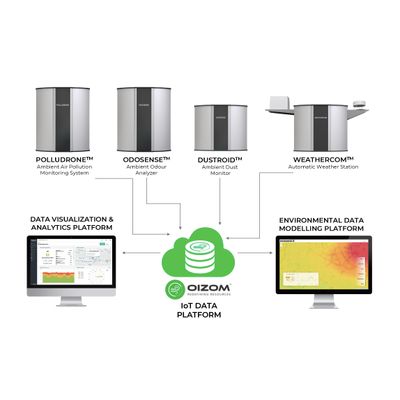

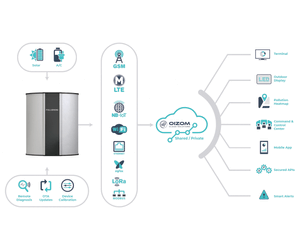

All the Oizom monitoring systems are connected to Oizom cloud. There is a complex yet modular solution arechitecture which enable Environmental IoT solution to be highly flexible as per application requirements. In case of GSM , Wifi & Ethernet the data is directly sent to Oizom IOT Gateway Service. Whereas, in case of Local Area Network like LORA and Sigfox, device sends data to respective Local Gateway and those third party gateway pushes the data to Oizom IoT Gateway service via Data collector APIs. The data is then pushed to OIZOM cloud via EDIE (Environment Data Interpretation Engine) where it takes into account lab calibration data and Machine learning Training set. After processing the data, it is further pushed to the data viewing platform or sent to third party apps using APIs.
- Cloud Software: Data acquired onsite is transmitted to the Oizom Terminal for analysis through our cloud platform. The results are then reverted to the users in desirable formats.
- On-premise: Data can also be stored in the local server as per the customer’s requirements. Data is locally transferred using FTP to Terminal and final output is provided to the user.
- Data Encryption for Security: We have a very stringent data security policy. MQTT Protocol , REST APIs & OAuth 2.0 token-based encryption is implemented throughout the system. Oizom offers impenetrable data security by deploying SSL Encryption for Web Application.
