Stormwater Detention - Lordco Auto Parts, Maple Ridge BC, Canada - Case Study

• Project Location: Lordco Auto Parts, Maple Ridge BC, CANADA
• Project Details: Stormwater Detention under a carpark
• Completion Date: July 2006

Lordco is the largest distributor and retailer of automotive parts and accessories. Lordco has over 90 stores throughout British Columbia with sites located in key centre to take full advantage of their proximity to existing and new clientele.

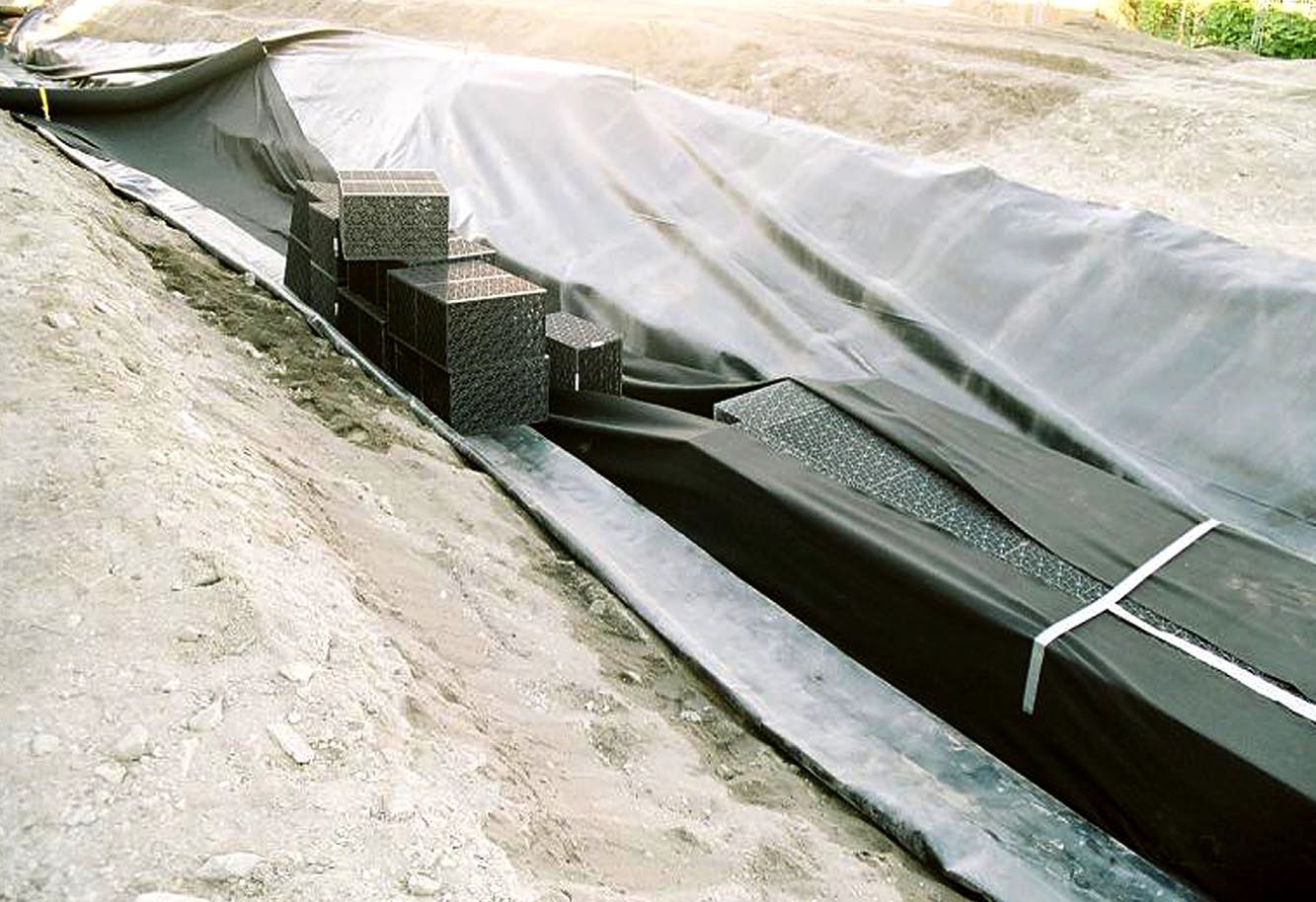

The Atlantis® Matrix® / D-Raintank® installation consisted of a 60.27 m³ (2128 cf) detention tank installed underneath a parking lot. The design and location of the tank was based on the strength of the Atlantis® Matrix® / D-Raintank® modules, which due to an internal vertical baffle system, supports heavy vehicle loading with ease.

Some of the collected storm water will ex-filtrate into the ground through the surrounding slightly permeable native soil. The remaining water will drain into the existing municipal storm sewers through a controlled outlet. The modular design and compact footprint makes it ideal and cost effective for all types of applications.

Installation Volume: 60.27 m³ (2128 cf) - 258 Atlantis® Double Matrix® / D-Raintank® modules
Installation Date: Start – July 19th 2006
Completion Date: July 27th 2006
