3TEK Global products

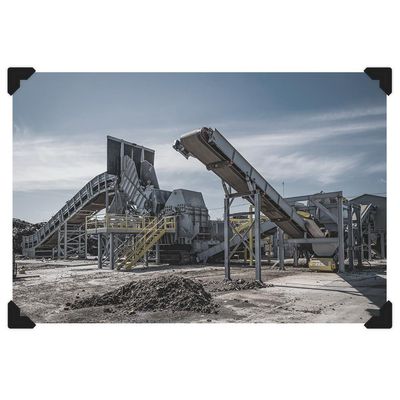

Hammer mill shredder for scrap metal: weight: 411,000 lbs. (186,430 kg) . Length: 34’9” (10.57 m). Width: 16’0” (4.88 m). Height: 29’2” (8.89 m). Loading height: 30 feet (9.1 m). Fuel consumption at rated output: n/a.

Hammer mill shredder for scrap metal: weight: 80,000 lbs. (36,292 kg) . Length: 23’5” (7.13 m). Width: 15’6” (4.75 m). Height: 13’6” (4.10 m). Loading height: n/a. Fuel consumption at rated output: 70 gal./hr.  (265 liters/hr.).

Industrial shredder for scrap metal: weight: 411,000 lbs. (186,430 kg). Length: 34’9” (10.57 m). Width: 16’0” (4.88 m). Height: 29’2” (8.89 m). Loading height: 30 feet (9.1 m).

Industrial shredder for scrap metal: weight: 59,000 (26,762 kg). Length: 26’0” (7.9 m). Width: 29’6” (9 m). Height: 18’0” (5.5 m). Loading height: n/a.

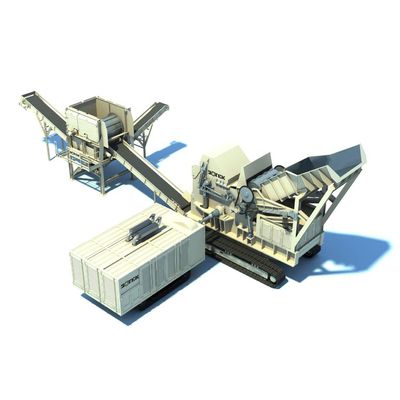

Mobile shredding system for scrap metal: output per month: 1,500-3,000 tons. Output per hour: 15-20 tons/hr. In ferrous output capacity (13.7 m tons/hour). Yards: 10,000 – 30,000 tons/year.

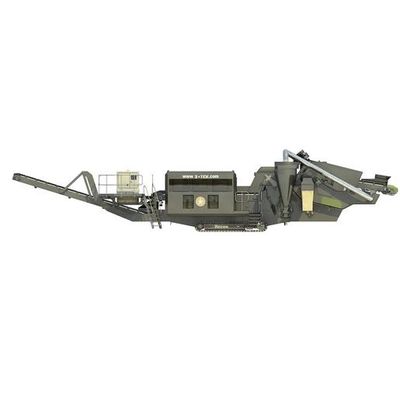

The Recon combines multiple separation technologies that together provide high capture rates and excellent cleanliness of ferrous scrap. Shredded, liberated scrap enters the machine and is first met with an air knife and cyclone removing light fluff. It then passes under a permanent magnet drum which separates the ferrous metals from the “all other” (non-ferrous + waste fraction). Ferrous scrap enters the 4-man picking station for further cleaning and then out on to the ferrous stacking conveyor. The “all other” fraction is taken away to the Eddy Current Separator (ECS60) for further processing.

The ECS60 is a mobile metal separation unit and the ideal partner to the Recon. Features include a magnetic drum for tramp ferrous recovery, a 60” Eddy Current separator for non-ferrous recovery, track mounted chassis for mobility, three stockpile configurable conveyors to takeaway processed materials, and all powered with a CAT Extra Quiet XQ60 KVA Genset.

Proprietary Parts are ones that we manufacture and are unique to 3TEK. We classify these into three types: Critical, Repair, and Wear/Consumable Parts.

Non-Proprietary Parts are readily available, over the counter parts we consciously design into our machines. We select top brands that offer great replacement availability.
