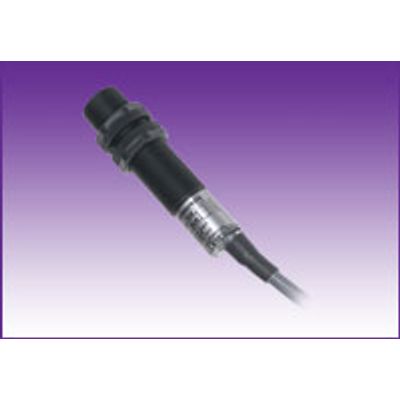

The P100 Proxswitch is an 18 mm inductive proximity sensor designed to detect shaft speed, shaft position, gate position, or object presence. The P100 Proxswitch is a limit switch style proximity sensor, which works on the damped oscillator principle. No contact is made between the sensor and the object being monitored.  The P100 will detect a ferrous object at a maximum distance of 5/16” (8 mm).  Two different sensor outputs are available. One with a normally closed output, and the other with a normally open output.  Both units are fully encapsulated, have 6 foot cable leads and include LED’s to indicate target detection.
