ABB Measurement Products products

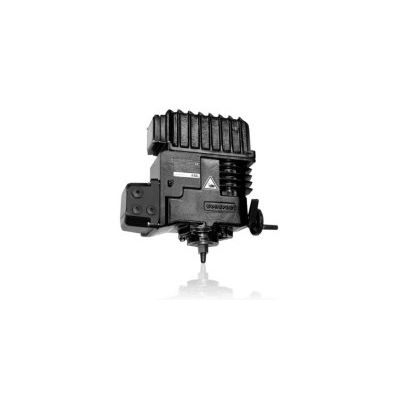

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 100 Nm (80 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 250 Nm (200 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

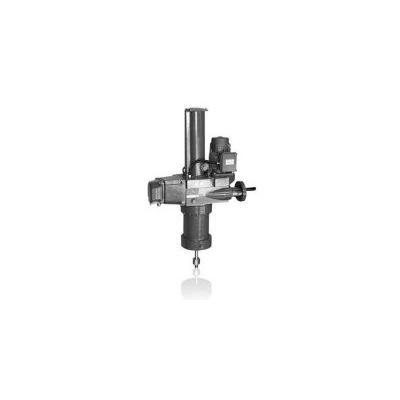

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 4 kN (900 lbf). The actuator thrust rod transfers the force directly to the final control element.

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 10 kN (2250 lbf). The actuator thrust rod transfers the force directly to the final control element.

Microprocessor-controlled electronic unit with integrated frequency converter for continuous control of electrical actuators. During continuous positioning the electronic unit varies the motor torque steplessly until the actuator force and the restoring process forces are balanced. High response sensitivity and positioning accuracy ensure an excellent control quality and a long actuator life expectancy.

Microprocessor-controlled electronic unit with integrated frequency converter for continuous control of electrical actuators. Also available as explosion-proof version. During continuous positioning the electronic unit varies the motor torque steplessly until the actuator force and the restoring process forces are balanced. High response sensitivity and positioning accuracy ensure an excellent control quality and a long actuator life expectancy.

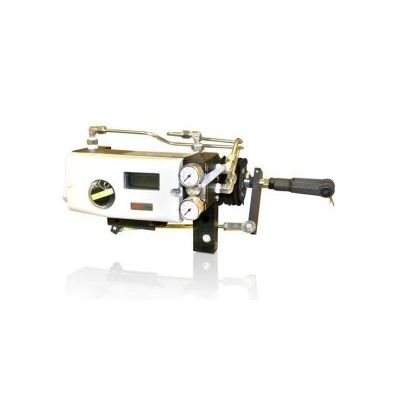

Type UP Pneumatic Universal Rotary Actuators regulate dampers, fan inlet vanes, lever-operated valves, turbine governors, fluid drives and other final control elements.

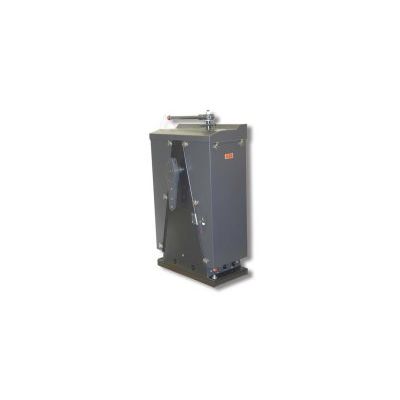

Type LP linear pneumatic actuators regulate dampers, inlet vanes, louvers, lever operated valves, turbine governors, fluid drives and other final control elements. The input signals provide modulating control to position the final control element in a linear motion or rotary motion via lever linkage.

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 500 / 800 Nm (400 / 600 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 1250 / 2500 Nm (1000 / 1900 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.
