21 products found
ABM Sensor Technology products
Radar Level Sensors
ABM - Model R-LIQ - Liquid Radar Level Sensor
The R-LIQ pulse radar sensor from ABM is the ideal solution for liquid level applications with vapours, gases (CO2, CO, H2S, H2), foaming, ice or volatile surfaces. The non-contact radar sensor provides continuous level measurement up to 340 ft (103.6 m) with 4-20 mA output standard and simple push-button calibration. The sensor can be factory configured for a variety of applications with 2-wire (HART) or 3-wire / 4-wire (RS232 or RS485) power and communication options, remote monitoring with the optional Cellular Gateway and multiple mounting options.
ABM - Model R-EXP - Explosion-Proof Radar Level Sensor
The R-EXP pulse radar sensor from ABM is the ideal solution for liquid, slurry or solid level applications in areas classified as hazardous (Class I Div I). The sensor is suited for processes with vapours, gases (CO2, CO, H2S, H2), foaming, ice or volatile surfaces. The non-contact radar sensor provides continuous level measurement up to 240 ft (73 m) with 4-20 mA output standard and simple push-button calibration.
ABM - Model R-HPR - High-Pressure Radar Level Sensor
The R-HPR pulse radar sensor from ABM is the ideal solution for liquid, slurry or solid level applications in high pressure processes with vapours, gases (CO2, CO, H2S, H2), foaming or volatile surfaces. The sensor is designed with a high pressure Teflon rod antenna that can handle up to 70 bar. The non-contact radar sensor provides continuous level measurement up to 100 ft (30 m) with 4-20 mA output standard and simple push-button calibration.
ABM - Model R-SLD - Solid Material Level Radar Sensor
The R-SLD pulse radar sensor from ABM is the ideal solution for solid material level applications with temperature variations, extreme temperatures, extreme dust, wind or acoustic noise. The non-contact radar sensor provides continuous level measurement up to 340 ft (103 m) with 4-20 mA output standard and simple push-button calibration.
ABM - Model R-FM - Flood Monitoring Radar Level Sensor
The R-FM dual frequency pulse radar sensor from ABM is the ideal solution for flood monitoring. The sensor is suited for challenging applications with temperature variations, extreme temperatures, rain, wind or acoustic noise. The non-contact radar sensor provides continuous level measurement up to 340 ft (103 m) with 4-20 mA output standard and simple push-button calibration.
ABM - Model R-ID - Interface Detection Radar Level Sensor
The R-ID pulse radar sensor from ABM is the ideal solution for oil-water interface detection in challenging applications with temperature variations, extreme temperatures, vapours or acoustic noise. The non-contact radar sensor provides continuous interface level detection up to 240 ft (73 m) with 4-20 mA output standard and simple push-button calibration.
ABM - Model R-SAN - Sanitary Radar Level Sensor
The R-SAN pulse radar sensor from ABM is the ideal solution for hygienic liquid, slurry or solid level applications with vapours, gases (CO2, CO), foaming or volatile surfaces. The sensor is designed with a Food Grade Teflon antenna with 2” tri-clamp mounting and withstands clean-in-place (CIP) processes, temperatures up to 400°F (204°C), and a maximum pressure rating of 2 bar (29 psi). The non-contact radar sensor provides continuous level measurement up to 100 ft (30 m) with 4-20 mA output standard and simple push-button calibration.
ABM - Model R-HT - High Temperature Radar Level Sensor
The R-HT pulse radar sensor from ABM is the ideal solution for liquid, slurry or solid level applications in high temperature processes with vapours, gases (CO2, CO, H2S, H2), foaming or volatile surfaces. The sensor is designed with a Teflon rod and decoupler to handle process temperatures up to 350°F (177°C). For applications with extreme temperatures, a horn antenna with 8″ bottom flange and thermal gasket is used for temperatures up to 572°F (300°C).

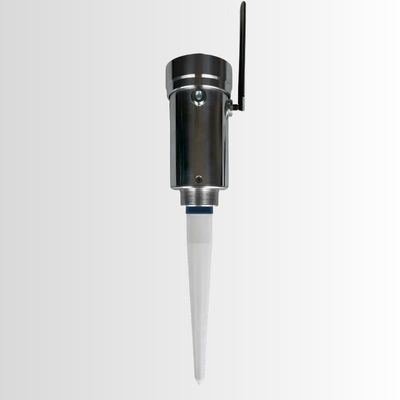

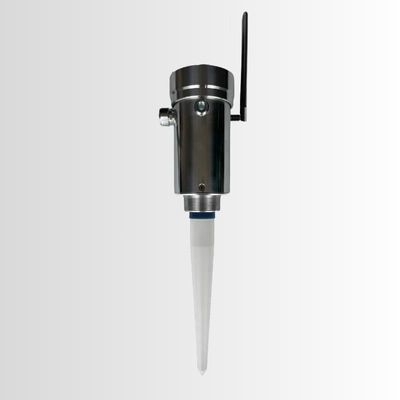

ABM - Model R-RMB - Wireless Remote Radar Level Sensor
The R-RMB pulse radar sensor from ABM is the ideal solution for liquid and solid remote level applications with vapours, gases (CO2, CO, H2S, H2), foaming, ice, volatile surfaces, wind, temperature variations, extreme temperatures or extreme dust. The low-power sensor with built-in cellular modem is plug-and-play, automatically connecting to the ABM servers that are fully secured for ease of installation – no need to set up SIM cards. The non-contact radar sensor provides level measurement up to 340 ft (103.6 m) with simple remote web calibration. The sensor can be factory configured for a variety of applications with multiple mounting options.
