Accsense Inc. products

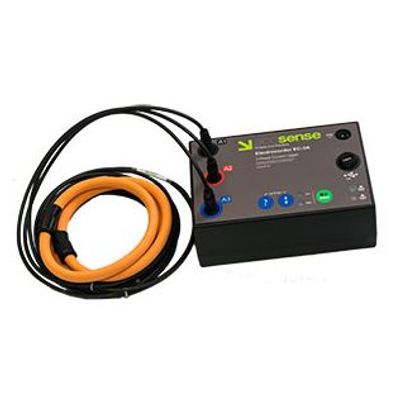

This data logger is specifically designed to monitor one, two or three current channels, allowing you to monitor the loading and energy consumption of the installation. The stored data is uploaded to a PC via the supplied USB cable. The product is supplied with three Rogowski transducers. Four models are available. The EC-3A-FK has a range of 5 to 400A, the EC-3A-1K has a range of 10 – 1kA, the EC-3A-2K a range of 15 – 2kA and the EC-3A-3K a range of 20 – 3kA. Other ranges may be factory set, normally up to around 10kA per phase. When recording the Electrocorder will store the average current over the period chosen (1 sec to 60 min), it will also record the highest (max) & lowest (min) cycle values during that period. The current levels are stored with dates and times. With the back-up battery, the Electrocorder can continue to record for 3 months. A 12Vdc PSU input is available, to allow for prolonged logging without battery power.

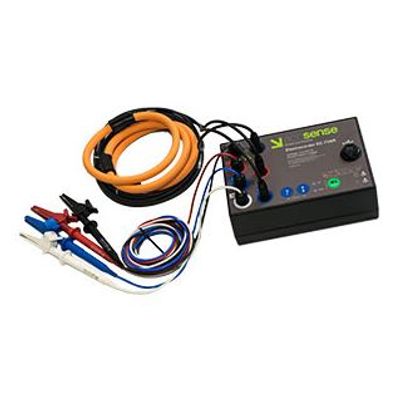

This data logger is specifically designed to monitor one, two or three current channels, as well as one, two or three voltage channels. It allows you to monitor the loading and energy consumption of the installation. There are many models of Electrocorder, to suit many logging situations and user’s requirements. Power Factor recorded is the phase angle between L1 and A1.

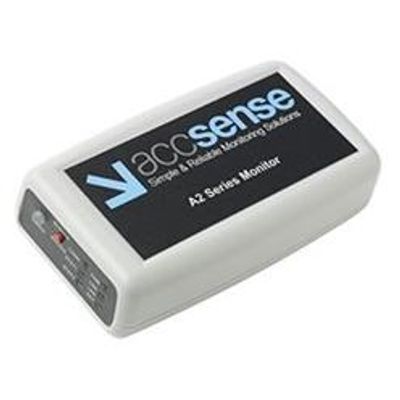

The A2-05 Ethernet Temperature monitor is designed for temperature measurement and alarm in medical refrigerators, freezers, cryogenic storage and incubators. The data logger has connections for external RTD and Thermocouple sensors. In the event of a loss of the network connection, the datalogger will store up to 256 data points, or until the connection is restored.

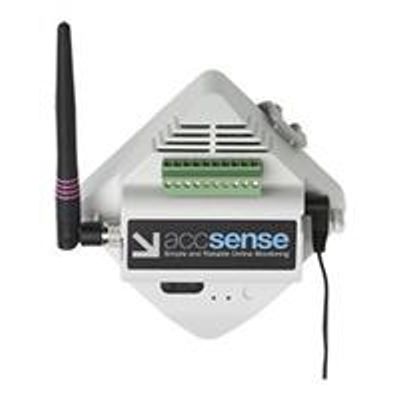

The A1-01a General Purpose Sensor Pod is designed for general environmental measurements. It provides several different internal sensors, as well as a screw terminal connector for connecting to a wide range of external analog sensors. The pod also includes a +5Vdc output to power external sensors. In the event no gateway can be reached, individual pods will store up to 255 data points, until a connection is restored. The stored data will be transferred to the online account. Pods have a range of approx. 80m (250ft), and can also act as a repeater for other’s signals.

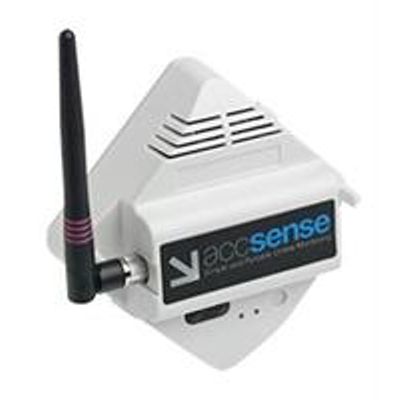

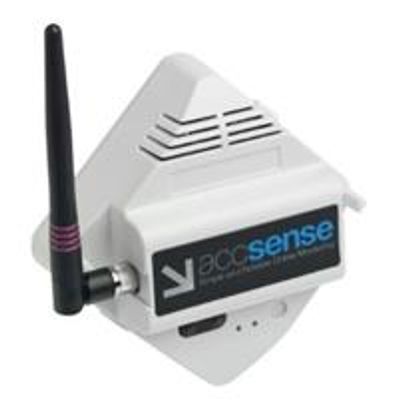

The A1-05a Atmospheric Sensor Pod measures the temperature and humidity at a given location. This pod can also be used as a “Repeater Pod” to extend the coverage or range of the network or to add redundancy to a network operating in an area with high interference.

The A1-08 Multi-Thermistor Pod is specifically designed to hook up to multiple thermistor inputs (6 total). This allows an increase in the number of sensors per pod and reduces the cost per measurement. This model also features two digital inputs and is designed to be connected to a wide range of digital sensors.

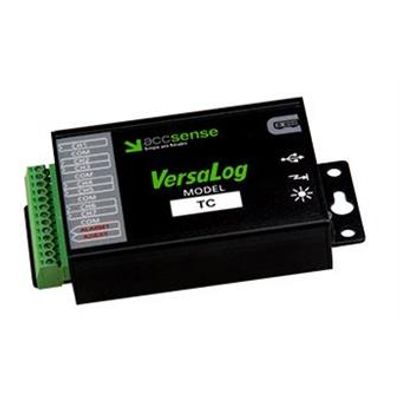

The 16-bit analog-to-digital converter meets most high-resolution requirements. The 4-Mega-Byte Memory stores up to 2 million measurements. Thermocouple: Type E, N, J, K, T One on-board thermistor channel monitors ambient temperature. Seven range programmable thermocouple voltage input channels cover wide measurement requirements. Sampling rate: 20 milliseconds to 12 hours user selectable. Can be accessed via USB, MODEM, or Ethernet connections with auto baud rate of up to 115 kbps. 10-year battery life. Fast sampling mode. Alarm and excitation output.
